Removal

AUDIO / VISUAL: AUDIO TERMINAL: REMOVAL

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle) Removal

2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Removal

3. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH Removal

4. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH Removal

5. REMOVE FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY (for Automatic Transaxle) Removal

6. REMOVE UPPER CONSOLE PANEL (for Manual Transaxle) Removal

7. REMOVE UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Automatic Transaxle) Removal

8. REMOVE UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Manual Transaxle) Removal

9. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY Removal

10. REMOVE AUDIO TERMINAL

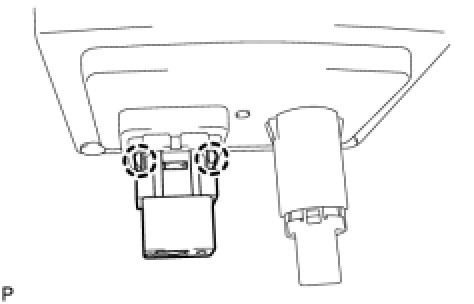

(a) Disengage the 2 claws and remove the audio terminal.
