U0129





METER: METER / GAUGE SYSTEM: U0129: Lost Communication with Skid Control ECU
U0129 - Lost Communication with Skid Control ECU

DESCRIPTION

The combination meter assembly communicates with the skid control ECU via the CAN communication lines (CAN No. 1 Bus).

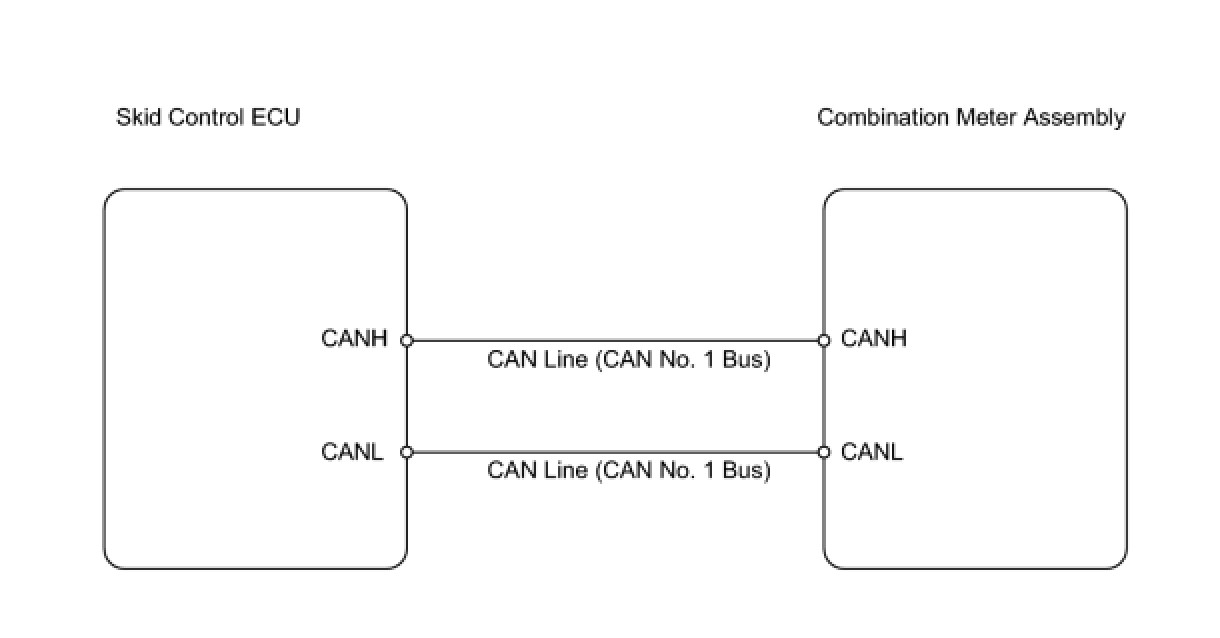

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CONFIRM DTC OUTPUT

(a) Connect Techstream to the DLC3.Connect Techstream to the DLC3.

(b) Turn the ignition switch on (IG).

(c) Turn Techstream on.

(d) Clear the stored DTCs by selecting the following menu items on Techstream: Body Electrical / Trouble Codes.

(e) Drive the vehicle at more than 5 km/h (3.1 mph) for at least 60 seconds.

(f) Stop the vehicle.

(g) Check for DTCs Diagnosis System.

Result:





HINT
If the CAN communication system DTC U0129 and another DTC are output at the same time, perform troubleshooting for the CAN communication system DTC U0129 first.

B -- USE SIMULATION METHOD TO CHECK

A -- GO TO CAN COMMUNICATION SYSTEM
