Audio System (8 Speaker w/ Navigation System), Navigation System (8 Speaker Type Audio) and Parking Assist

Audio System (8 Speaker w/ Navigation System), Navigation System (8 Speaker Type Audio) and Parking Assist (Rear View Monitor 8 Speaker Type Audio)

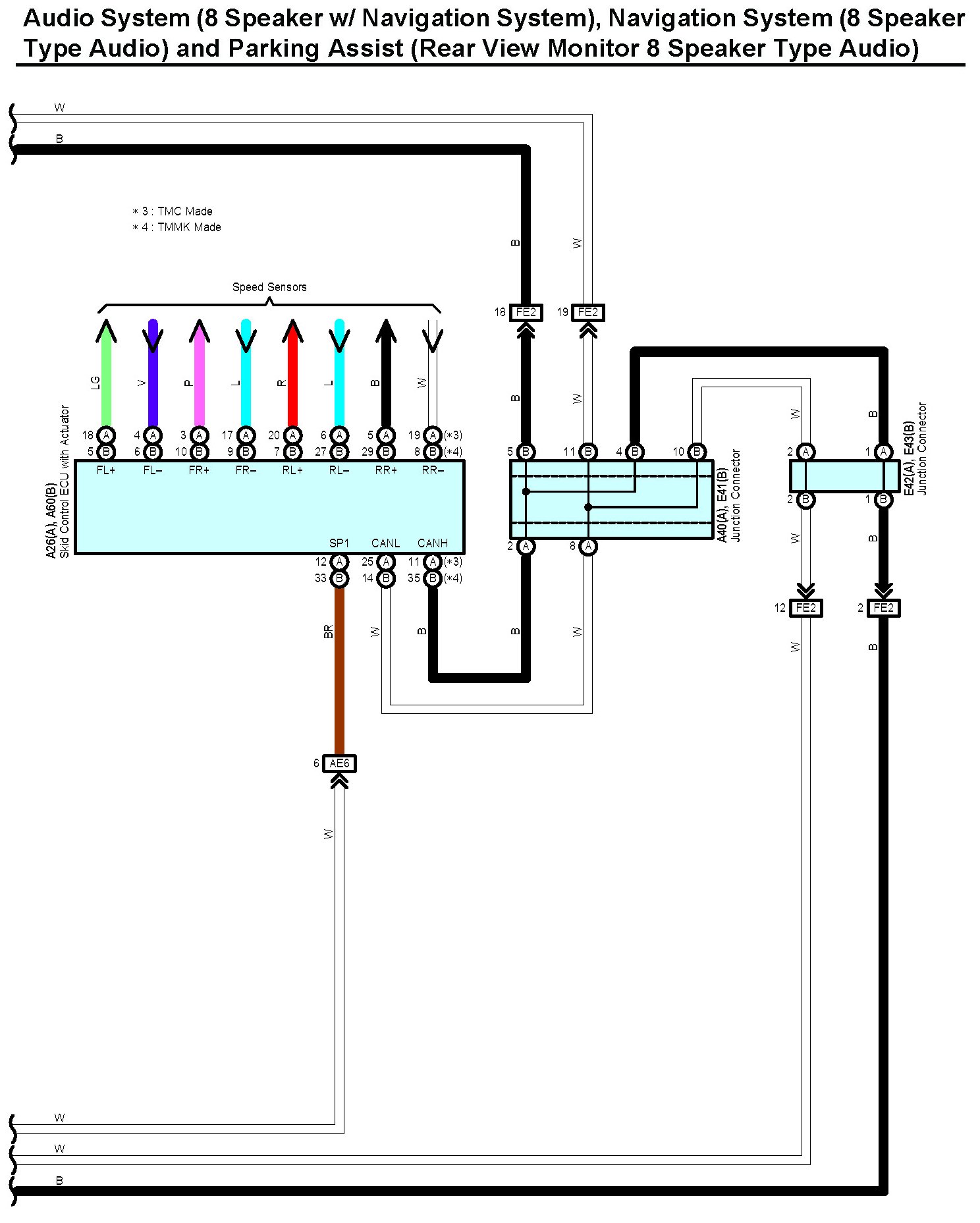

Audio System (8 Speaker w/ Navigation System), Navigation System (8 Speaker Type Audio) and Parking Assist (Rear View Monitor 8 Speaker Type Audio) Part 1:

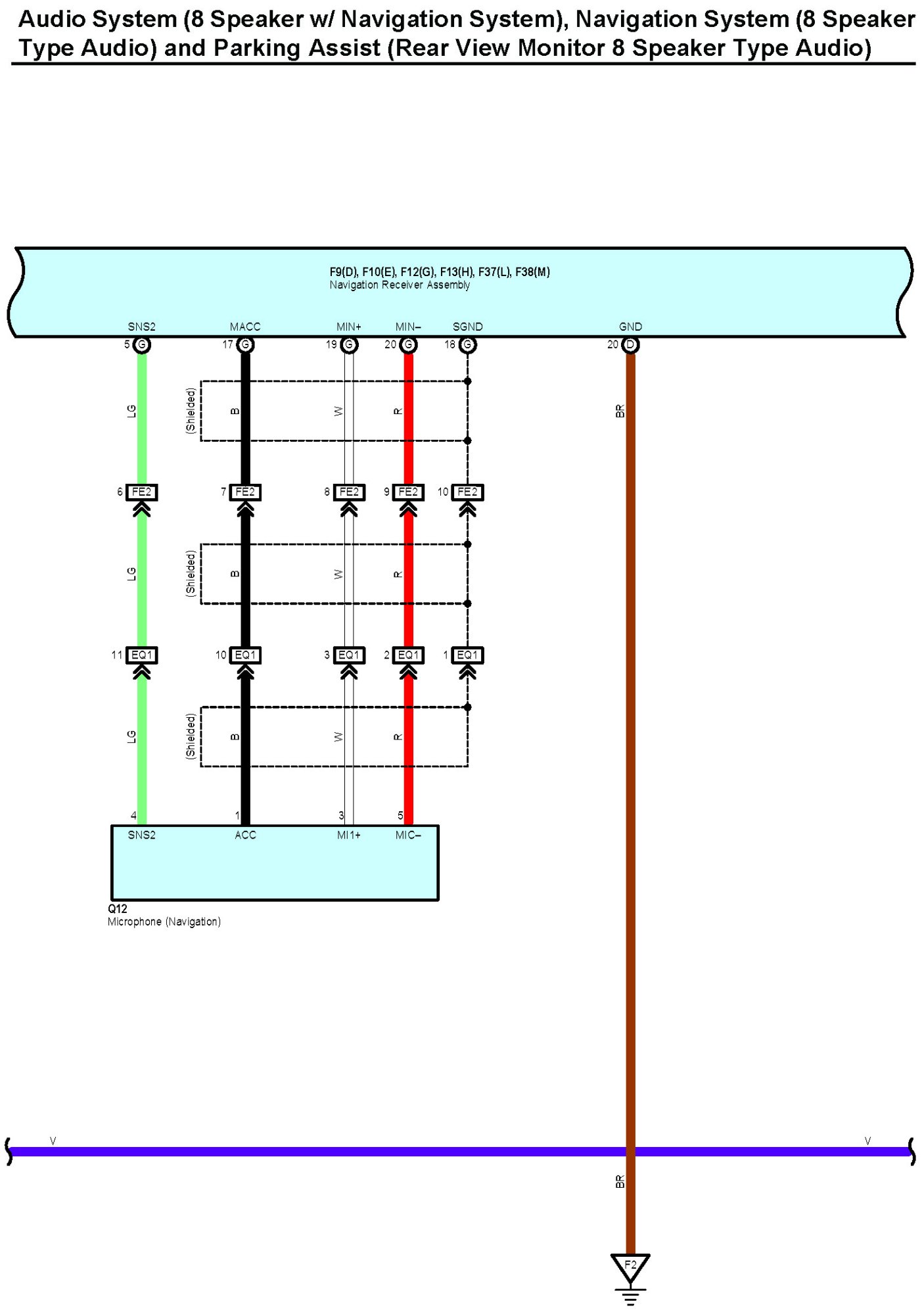

Audio System (8 Speaker w/ Navigation System), Navigation System (8 Speaker Type Audio) and Parking Assist (Rear View Monitor 8 Speaker Type Audio) Part 2:

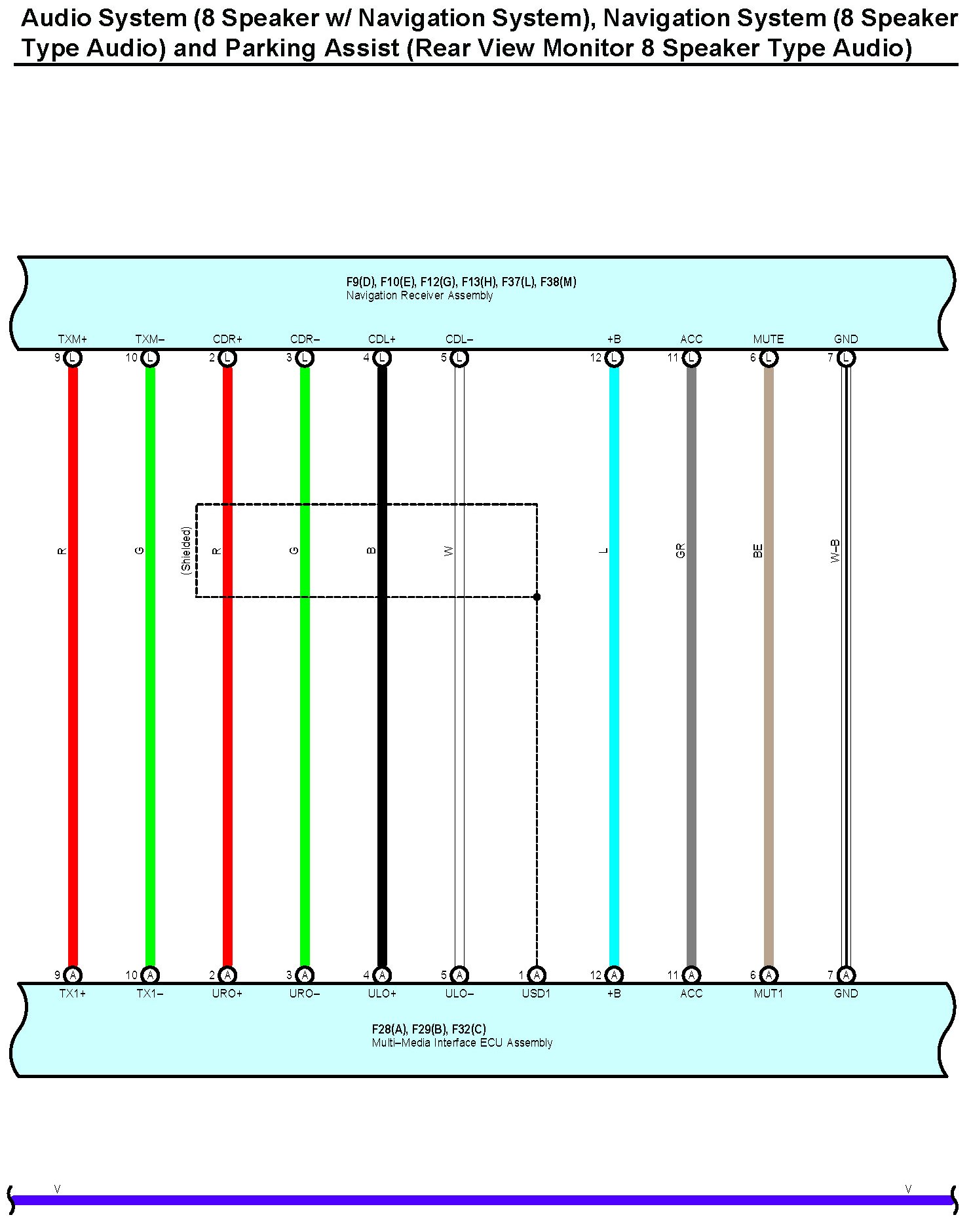

Audio System (8 Speaker w/ Navigation System), Navigation System (8 Speaker Type Audio) and Parking Assist (Rear View Monitor 8 Speaker Type Audio) Part 3:




Audio System (8 Speaker w/ Navigation System), Navigation System (8 Speaker Type Audio) and Parking Assist (Rear View Monitor 8 Speaker Type Audio) Part 4:




Audio System (8 Speaker w/ Navigation System), Navigation System (8 Speaker Type Audio) and Parking Assist (Rear View Monitor 8 Speaker Type Audio) Part 5:




Audio System (8 Speaker w/ Navigation System), Navigation System (8 Speaker Type Audio) and Parking Assist (Rear View Monitor 8 Speaker Type Audio) Part 6:




Audio System (8 Speaker w/ Navigation System), Navigation System (8 Speaker Type Audio) and Parking Assist (Rear View Monitor 8 Speaker Type Audio) Part 7:




Audio System (8 Speaker w/ Navigation System), Navigation System (8 Speaker Type Audio) and Parking Assist (Rear View Monitor 8 Speaker Type Audio) Part 8:




Audio System (8 Speaker w/ Navigation System), Navigation System (8 Speaker Type Audio) and Parking Assist (Rear View Monitor 8 Speaker Type Audio) Part 9:




Audio System (8 Speaker w/ Navigation System), Navigation System (8 Speaker Type Audio) and Parking Assist (Rear View Monitor 8 Speaker Type Audio) Part 10:




Audio System (8 Speaker w/ Navigation System), Navigation System (8 Speaker Type Audio) and Parking Assist (Rear View Monitor 8 Speaker Type Audio) Part 11:












Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
