Audible Warning Device

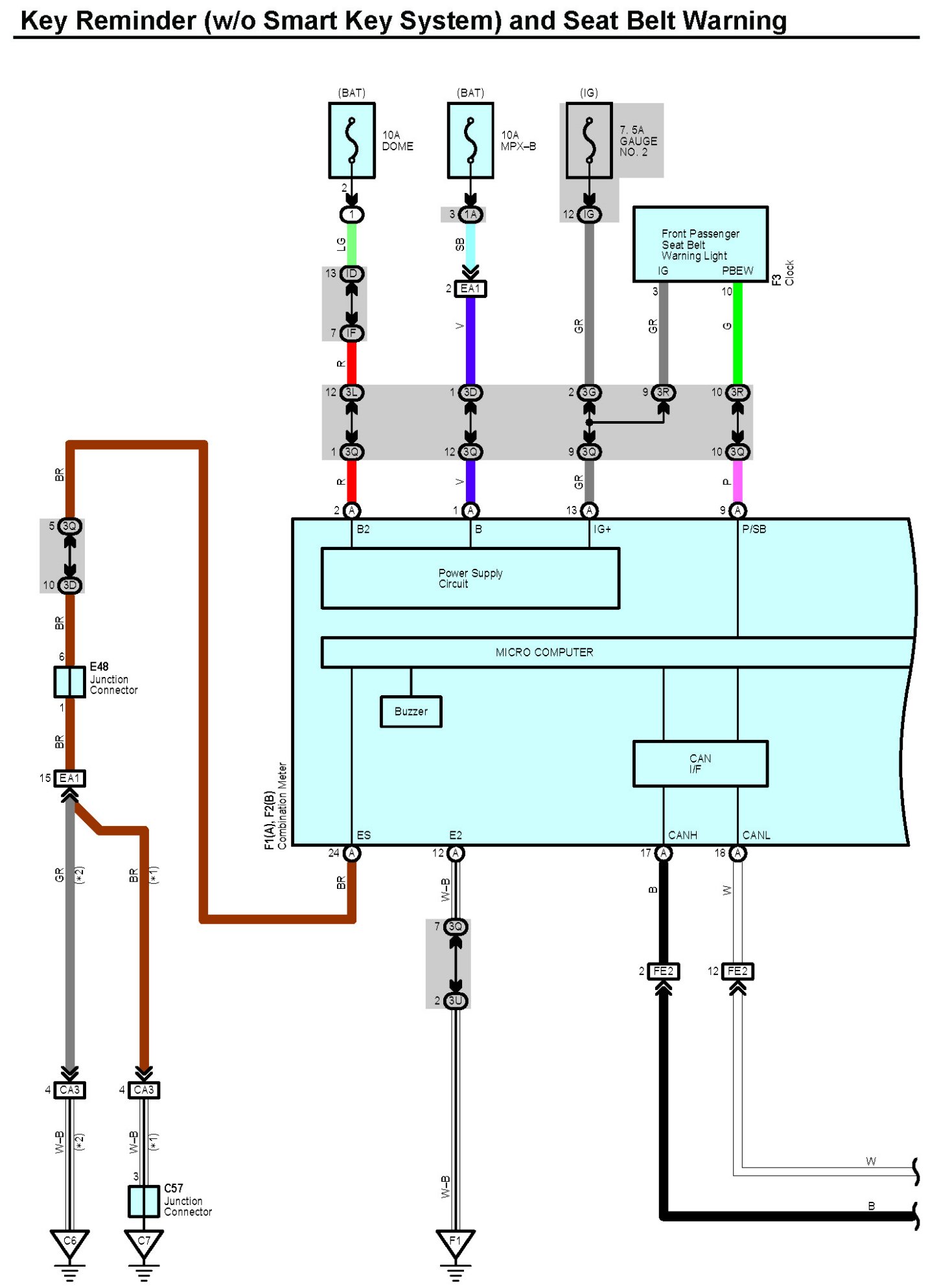

Key Reminder (w/o Smart Key System) and Seat Belt Warning Part 1:




Key Reminder (w/o Smart Key System) and Seat Belt Warning Part 2:




Key Reminder (w/o Smart Key System) and Seat Belt Warning Part 3:




Key Reminder (w/o Smart Key System) and Seat Belt Warning Part 4:









Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
