System Diagram

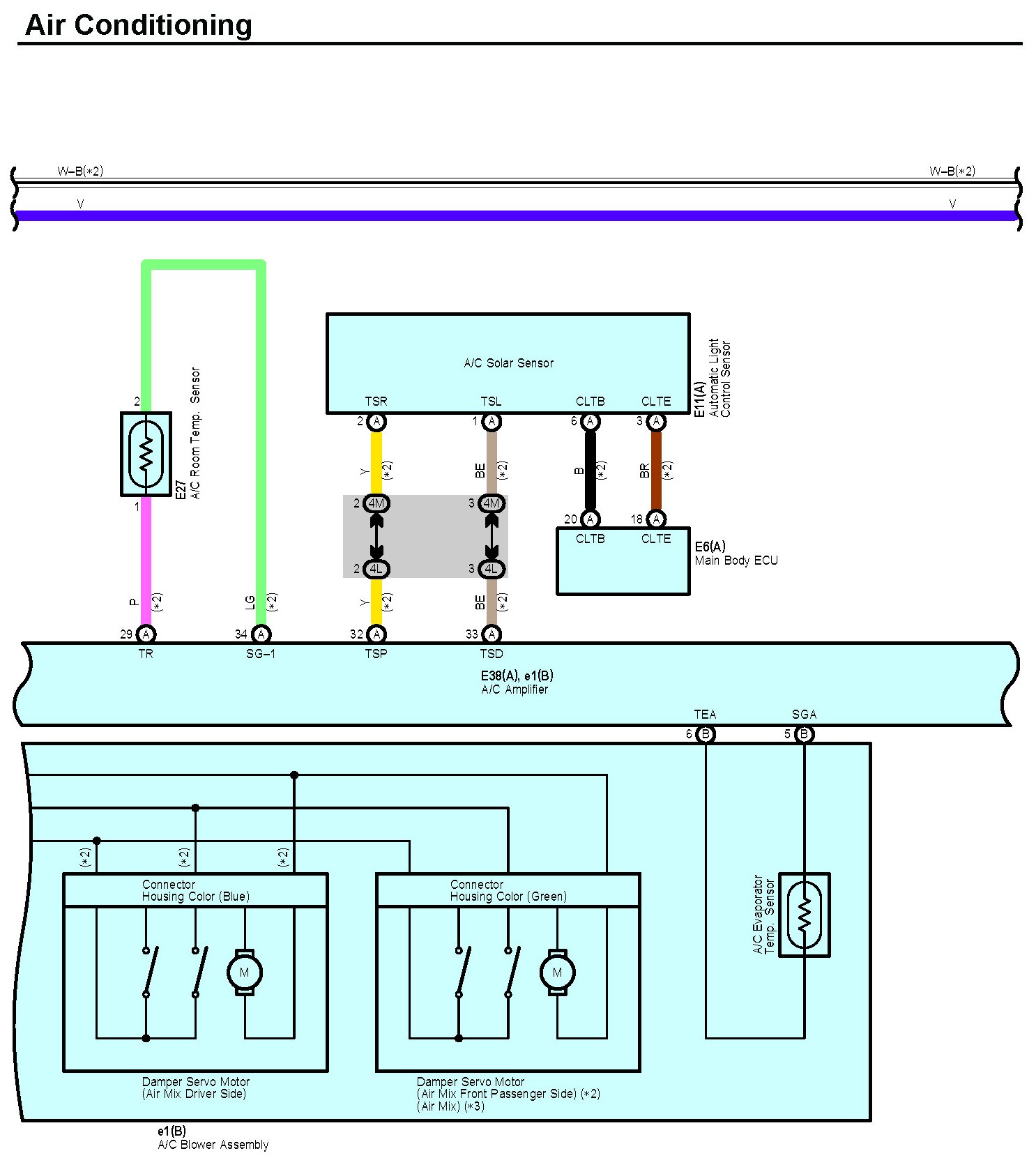

Air Conditioning Part 1:

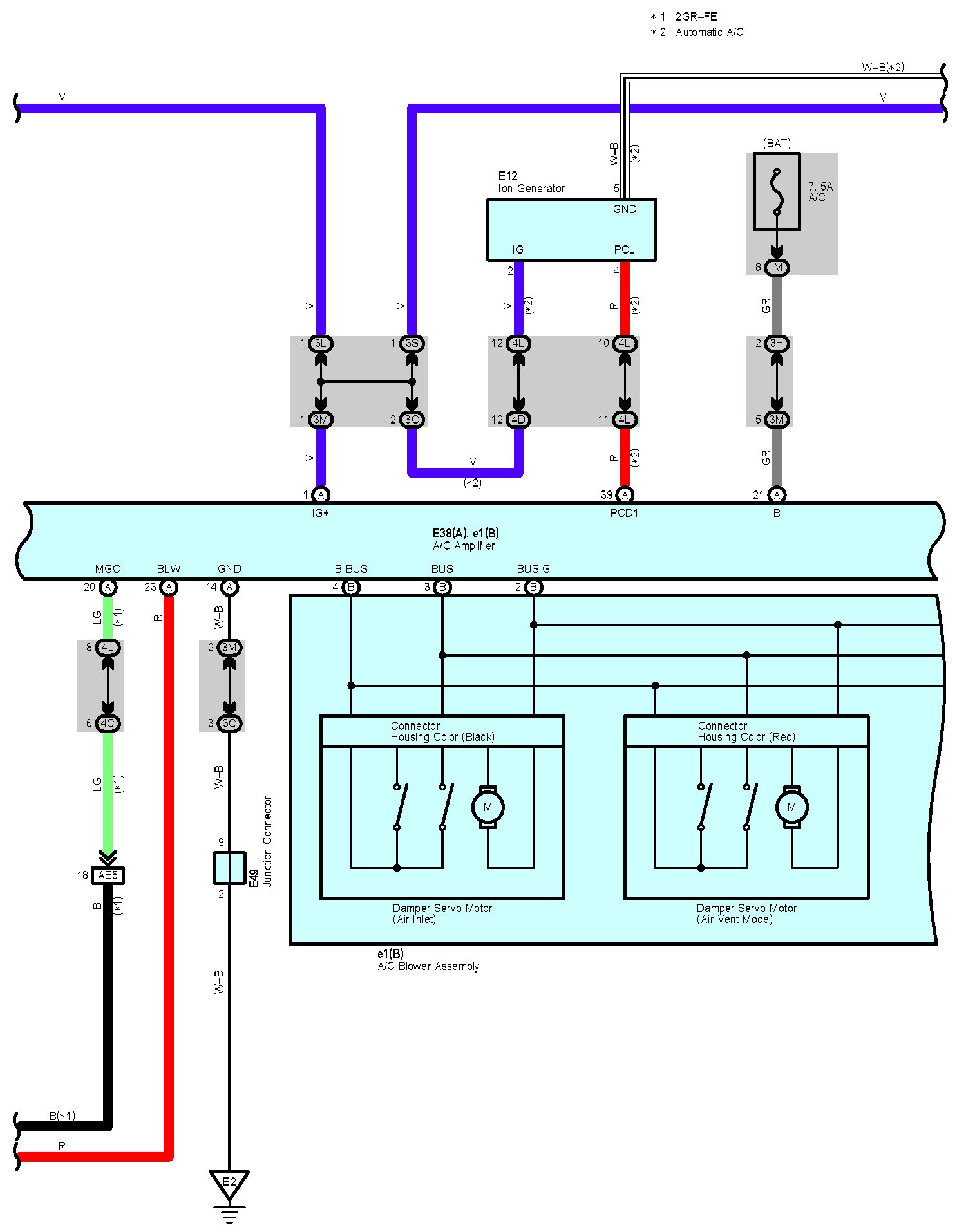

Air Conditioning Part 2:

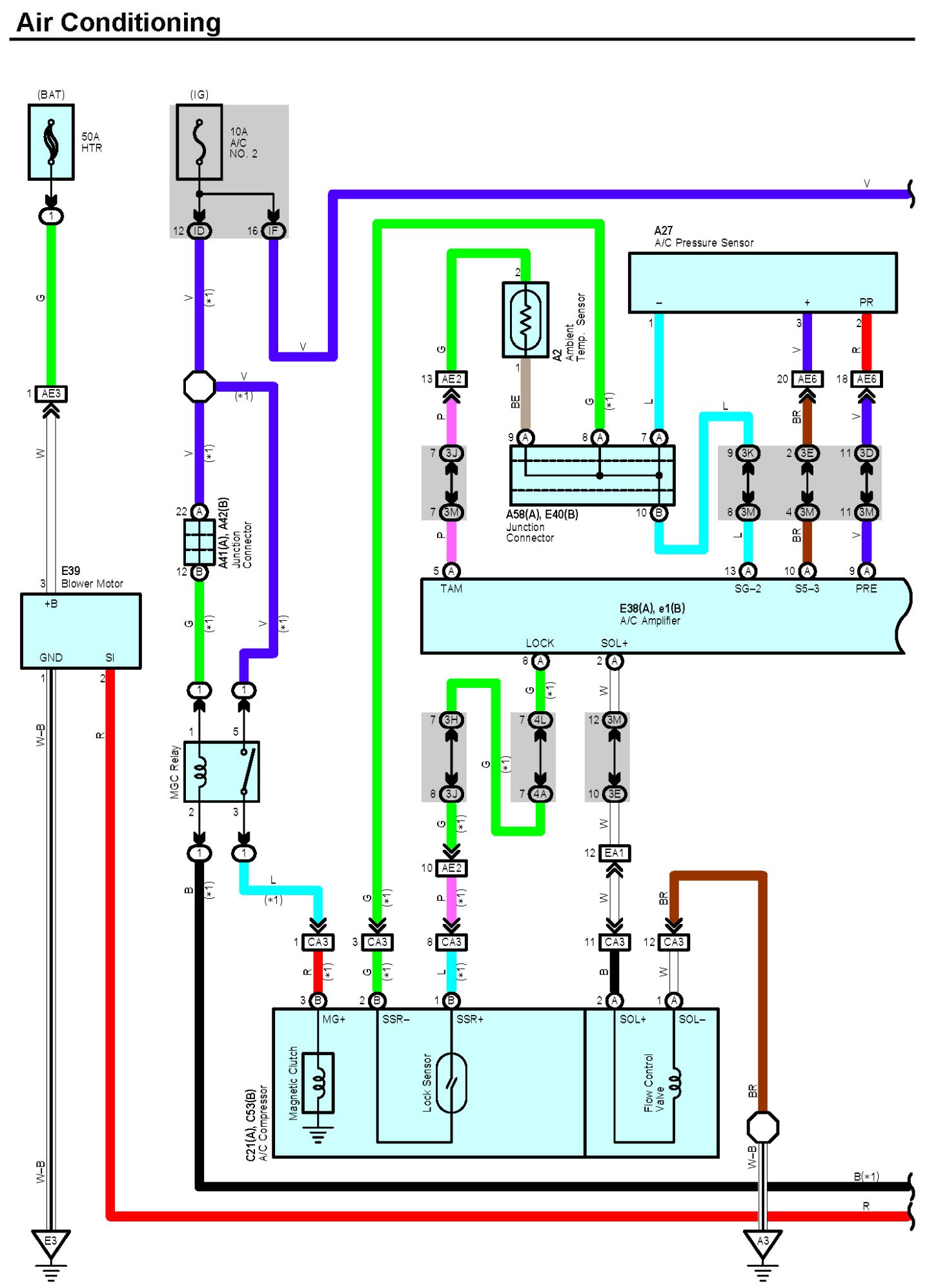

Air Conditioning Part 3:

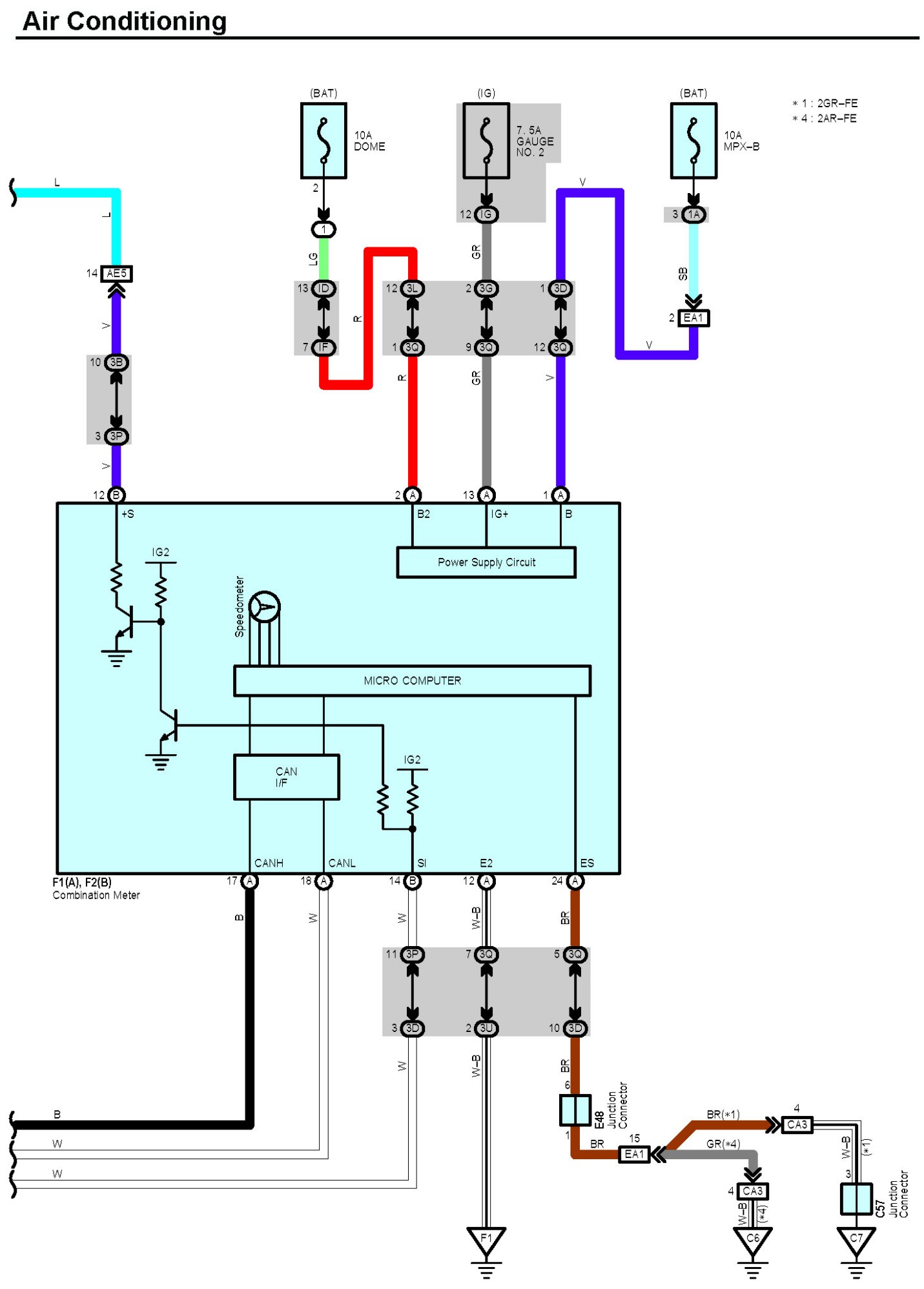

Air Conditioning Part 4:

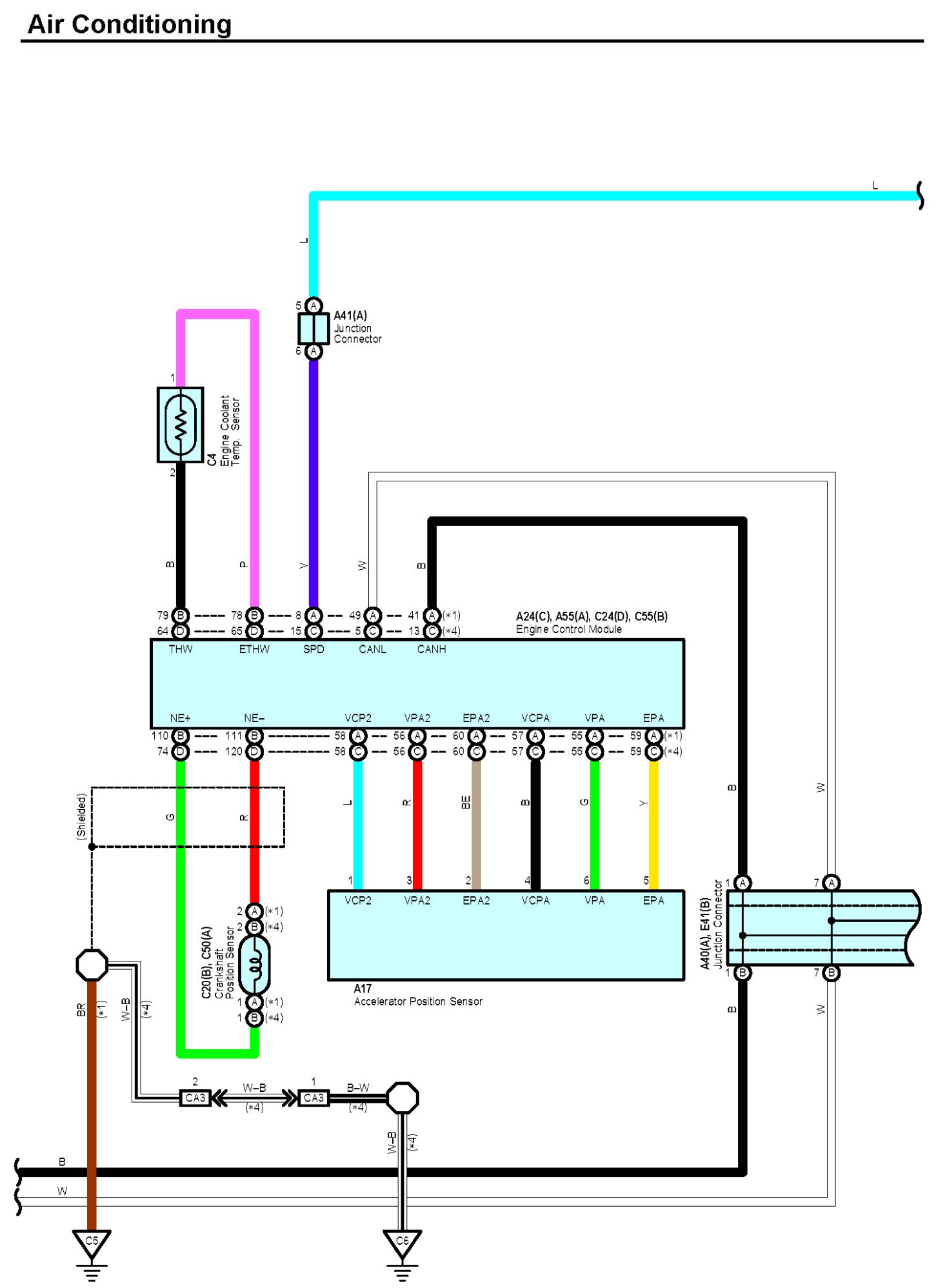

Air Conditioning Part 5:

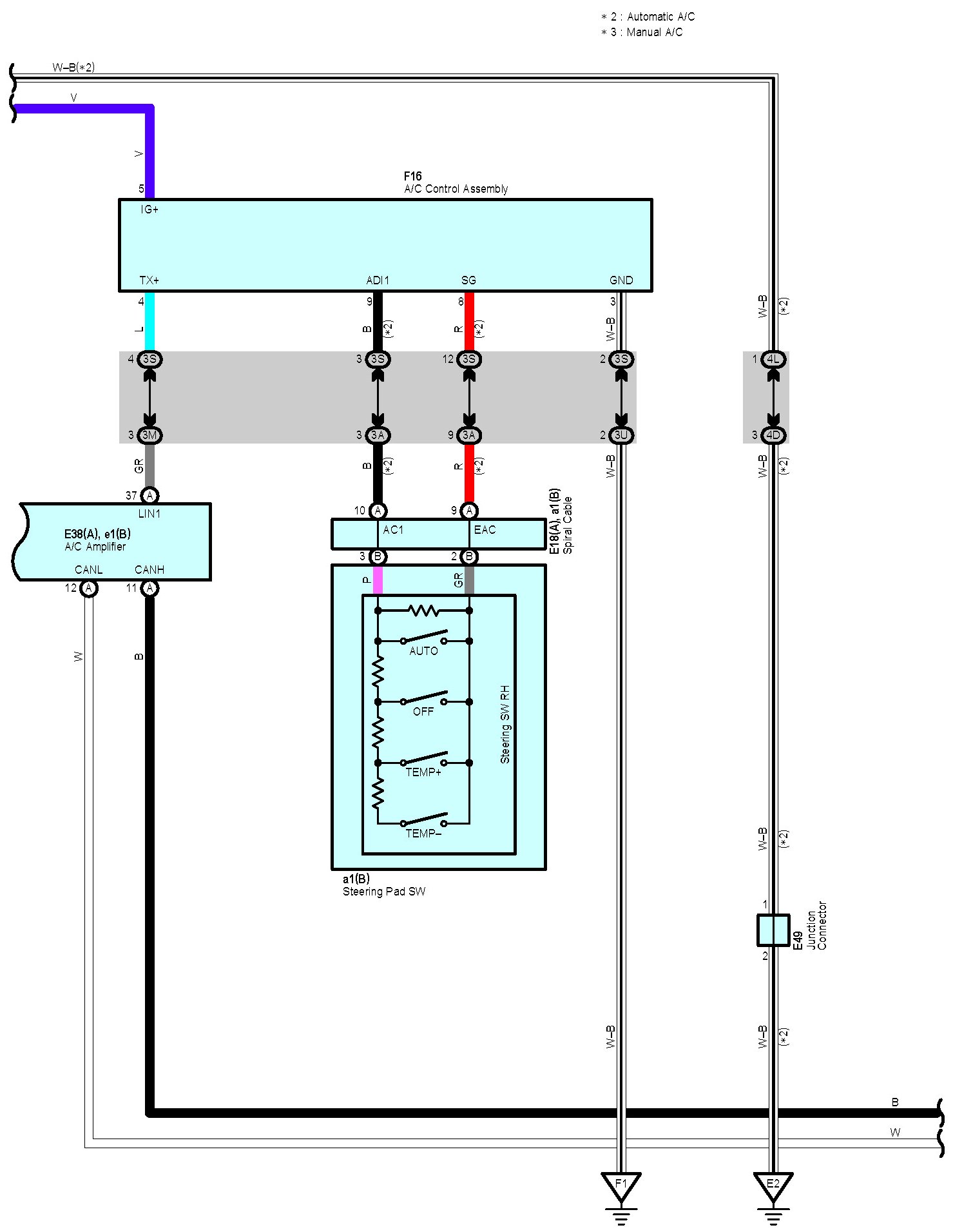

Air Conditioning Part 6:

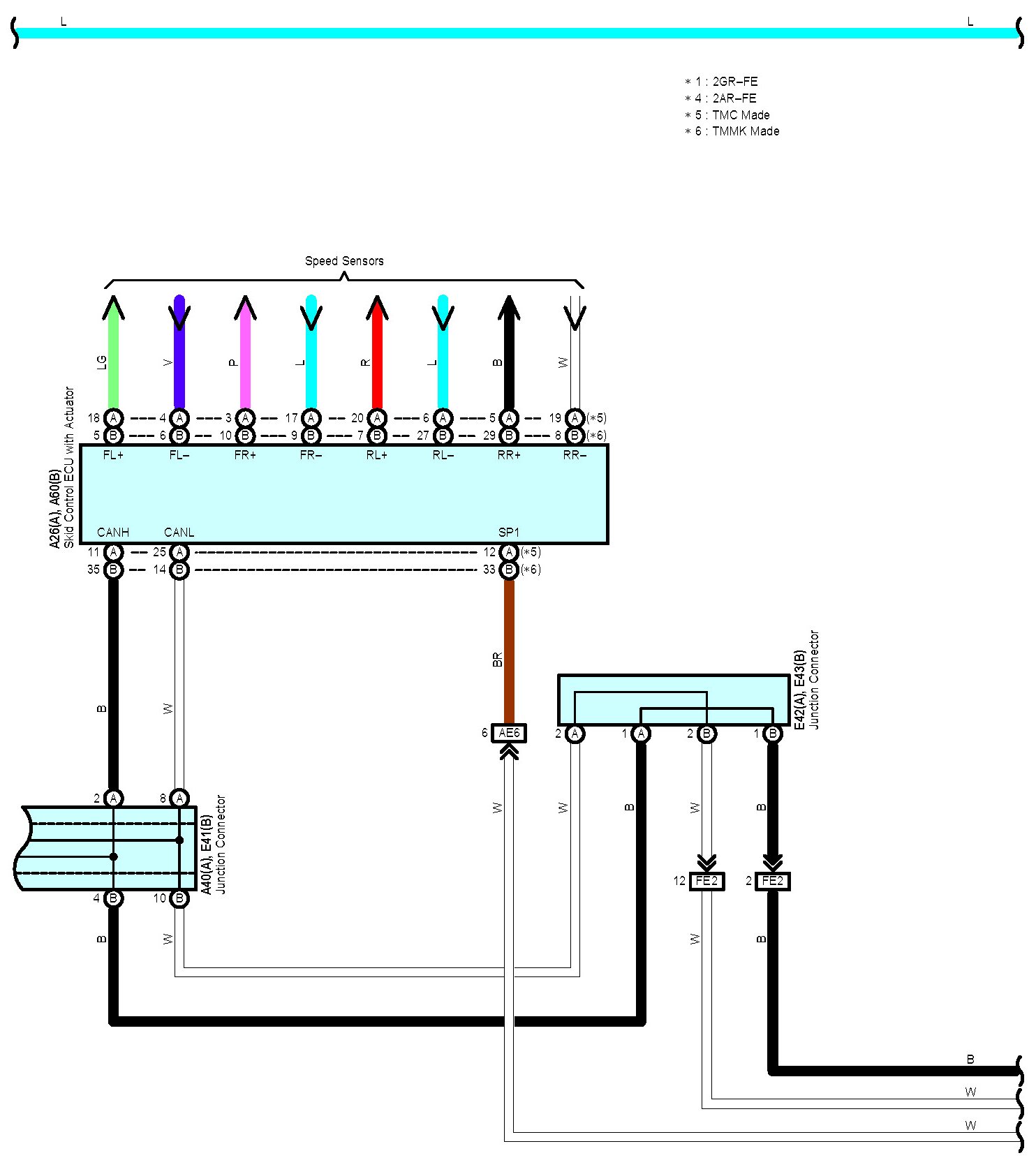

Air Conditioning Part 7:

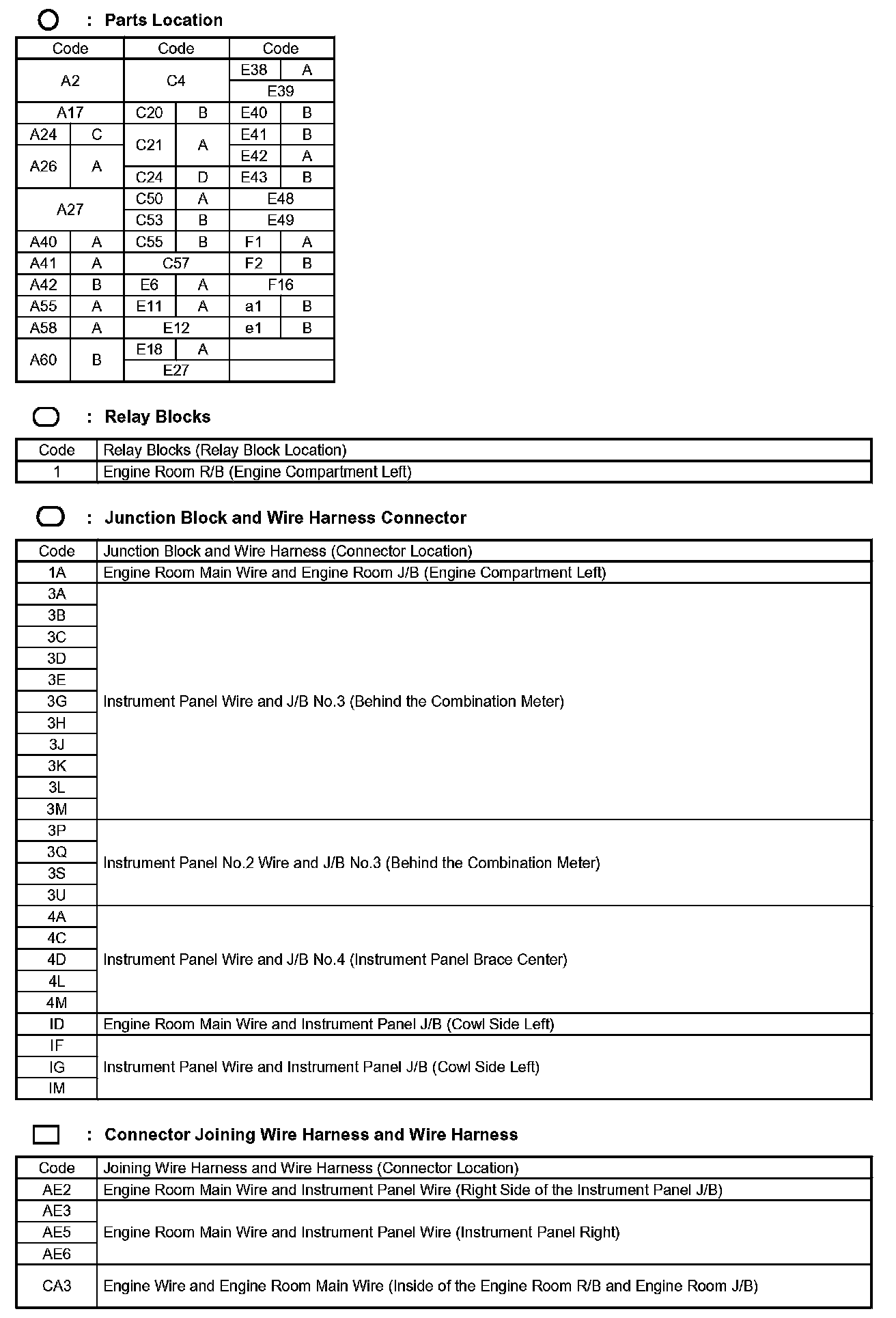

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
