Door Lock Position Circuit
LIGHTING: LIGHTING SYSTEM: Door LOCK Position Circuit
- Door LOCK Position Circuit
DESCRIPTION
The main body ECU receives each door lock position switch signal to control the illuminated entry system.

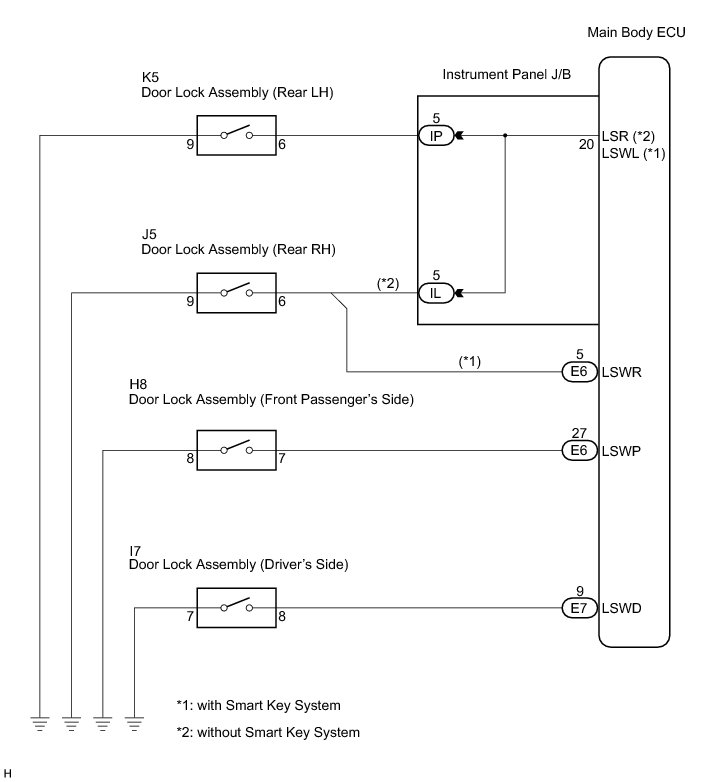

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
1. READ VALUE USING TECHSTREAM
(a) Connect Techstream to the DLC3.
(b) Turn the ignition switch on (IG).
(c) Turn Techstream on.
(d) Select the following menu items: Body Electrical / Main Body / Data List.

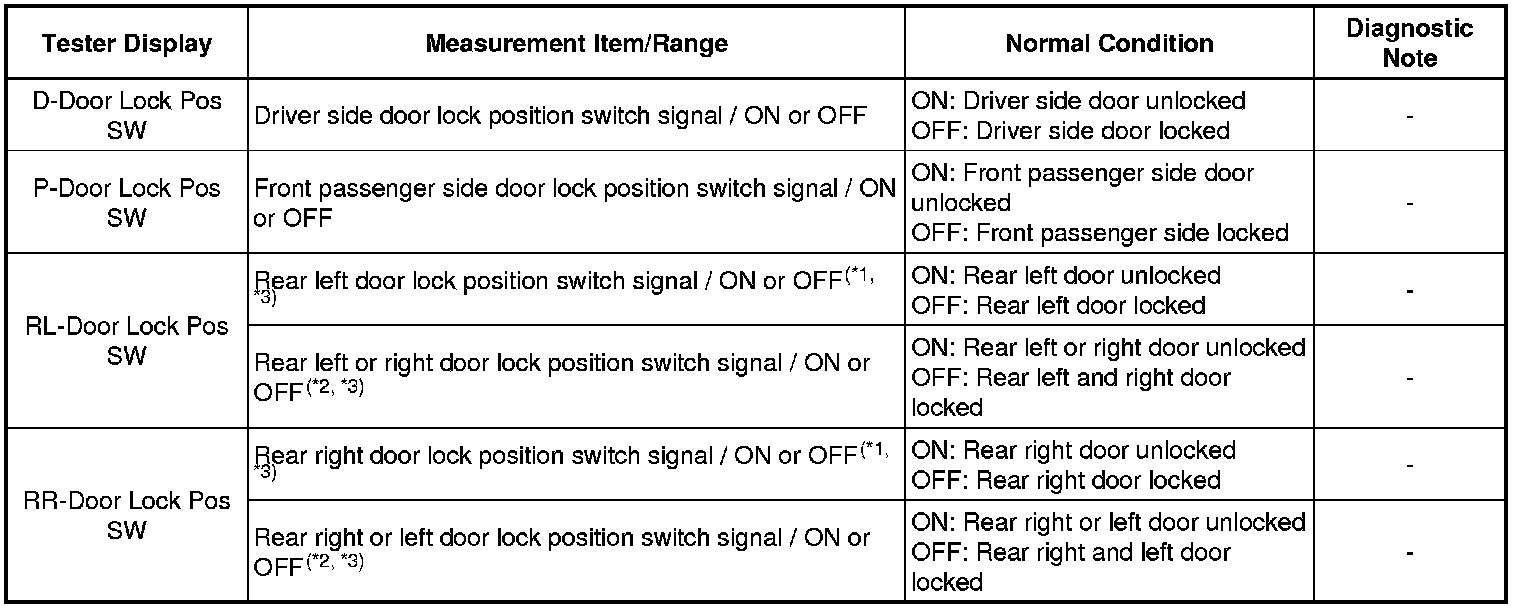

(e) Read the display on Techstream.
Main Body:
HINT
* *1: with Smart Key System
* *2: without Smart Key System
* *3: with Theft Deterrent
OK:
Normal conditions listed above are displayed.
NG -- GO TO POWER DOOR LOCK CONTROL SYSTEM
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
