Electrical Diagrams

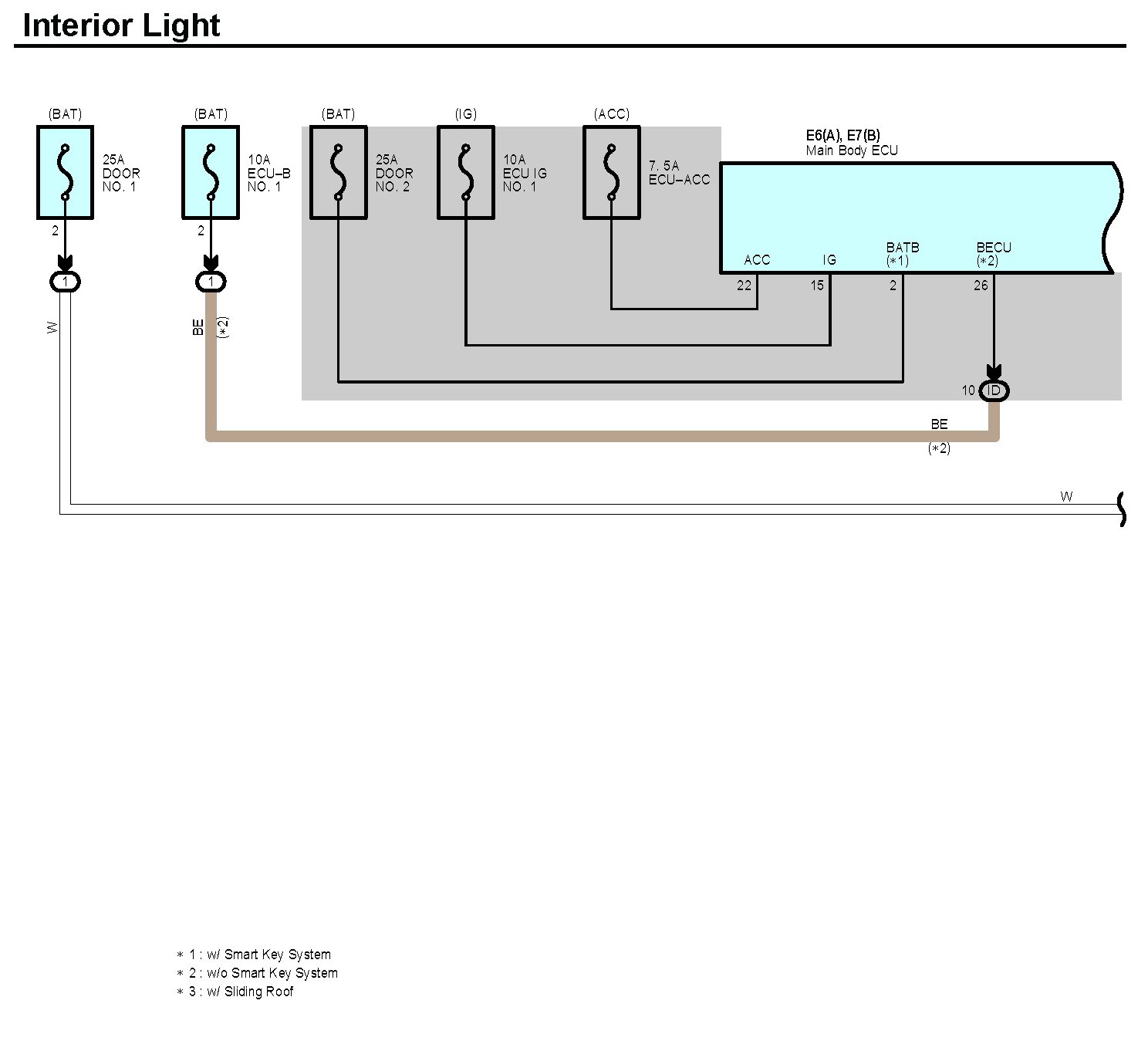

Interior Light Part 1:

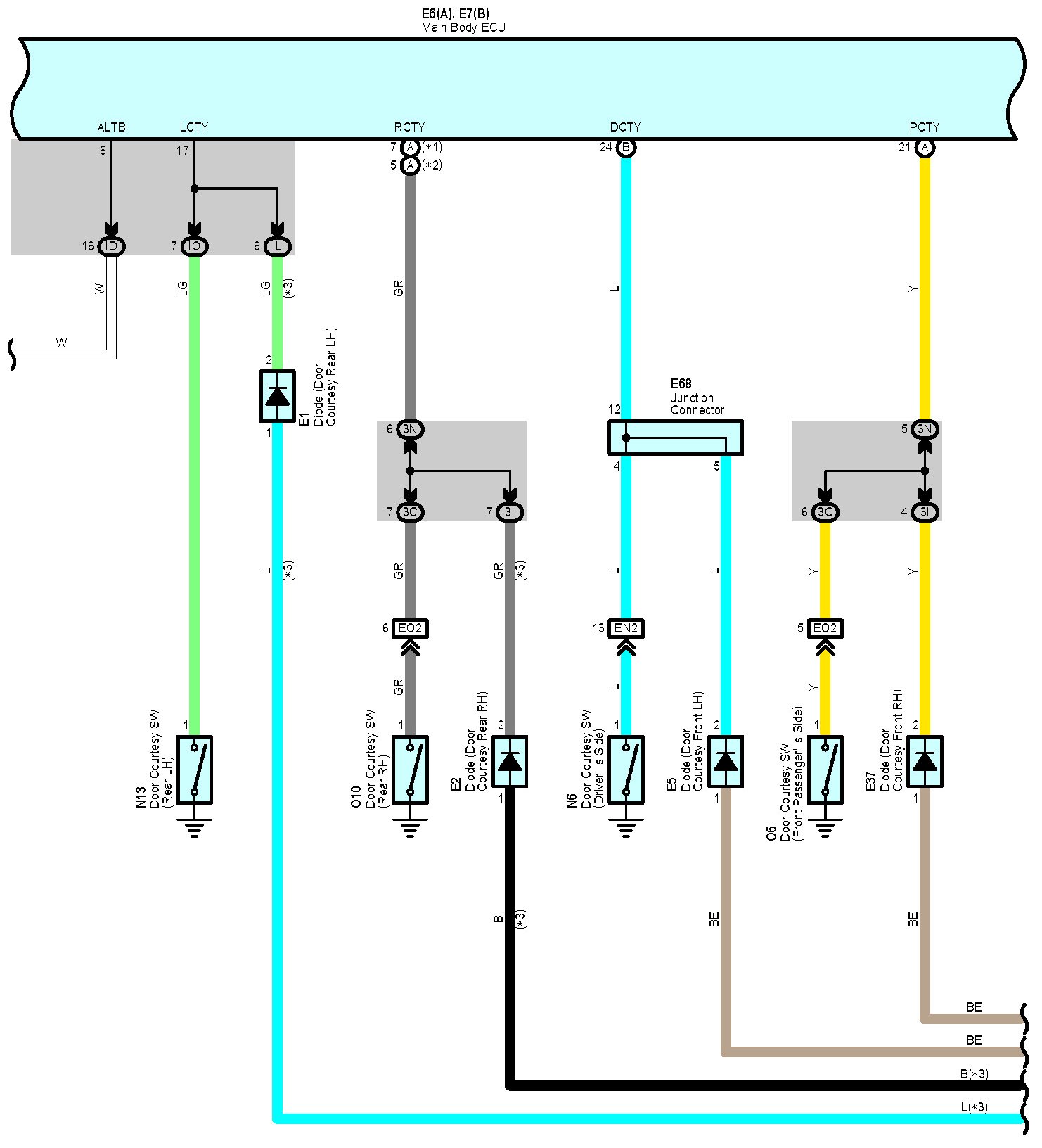

Interior Light Part 2:

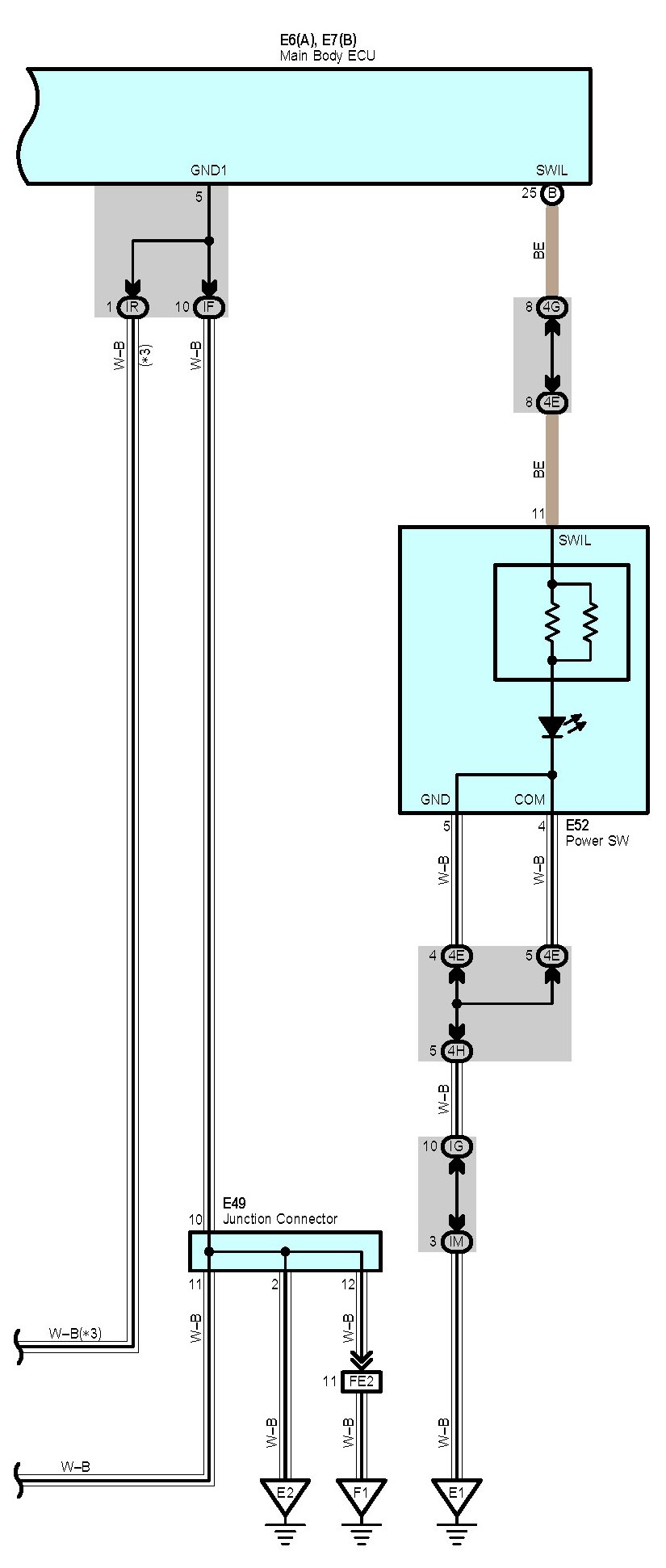

Interior Light Part 3:

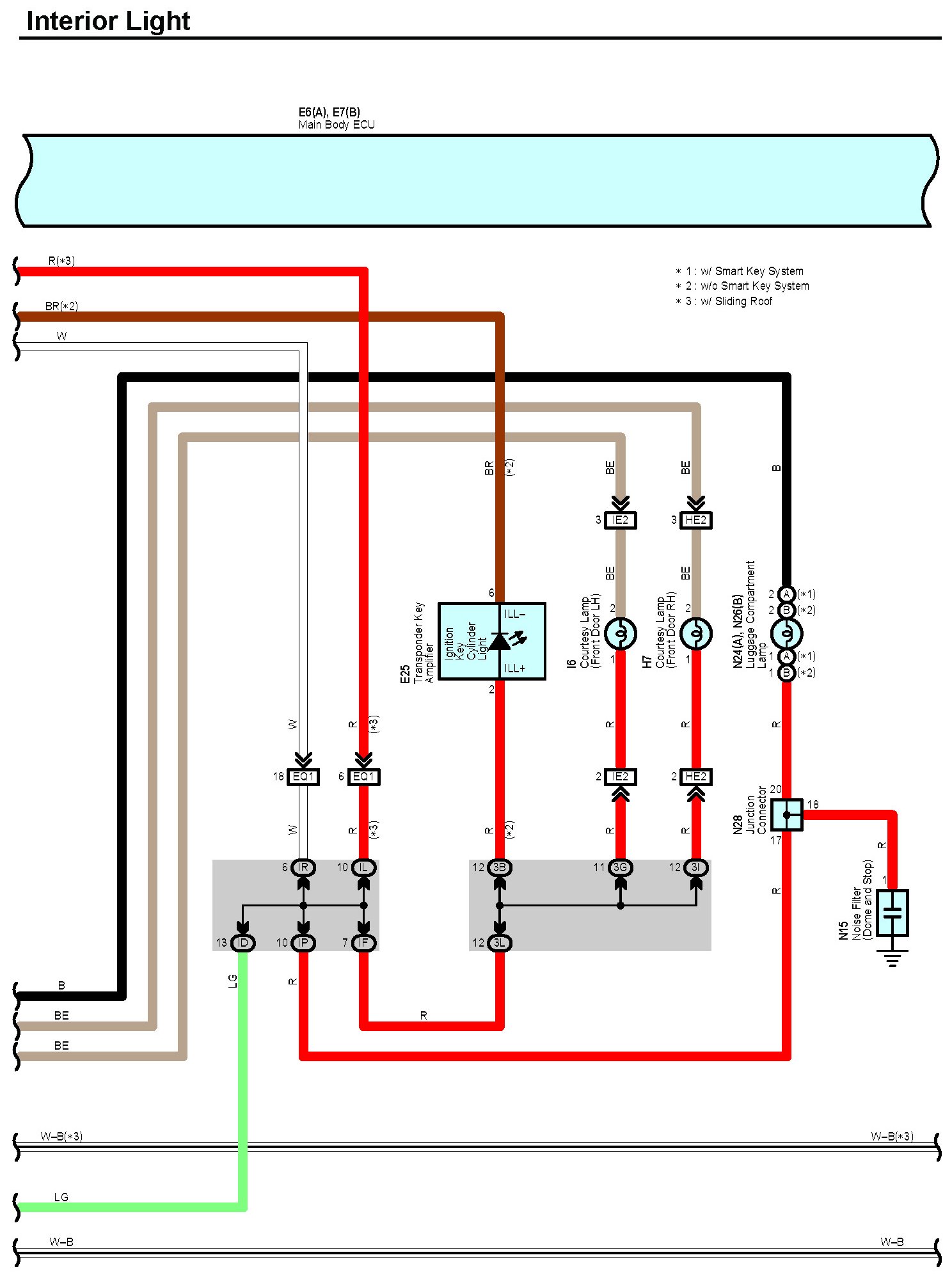

Interior Light Part 4:

Interior Light Part 5:

Interior Light Part 6:

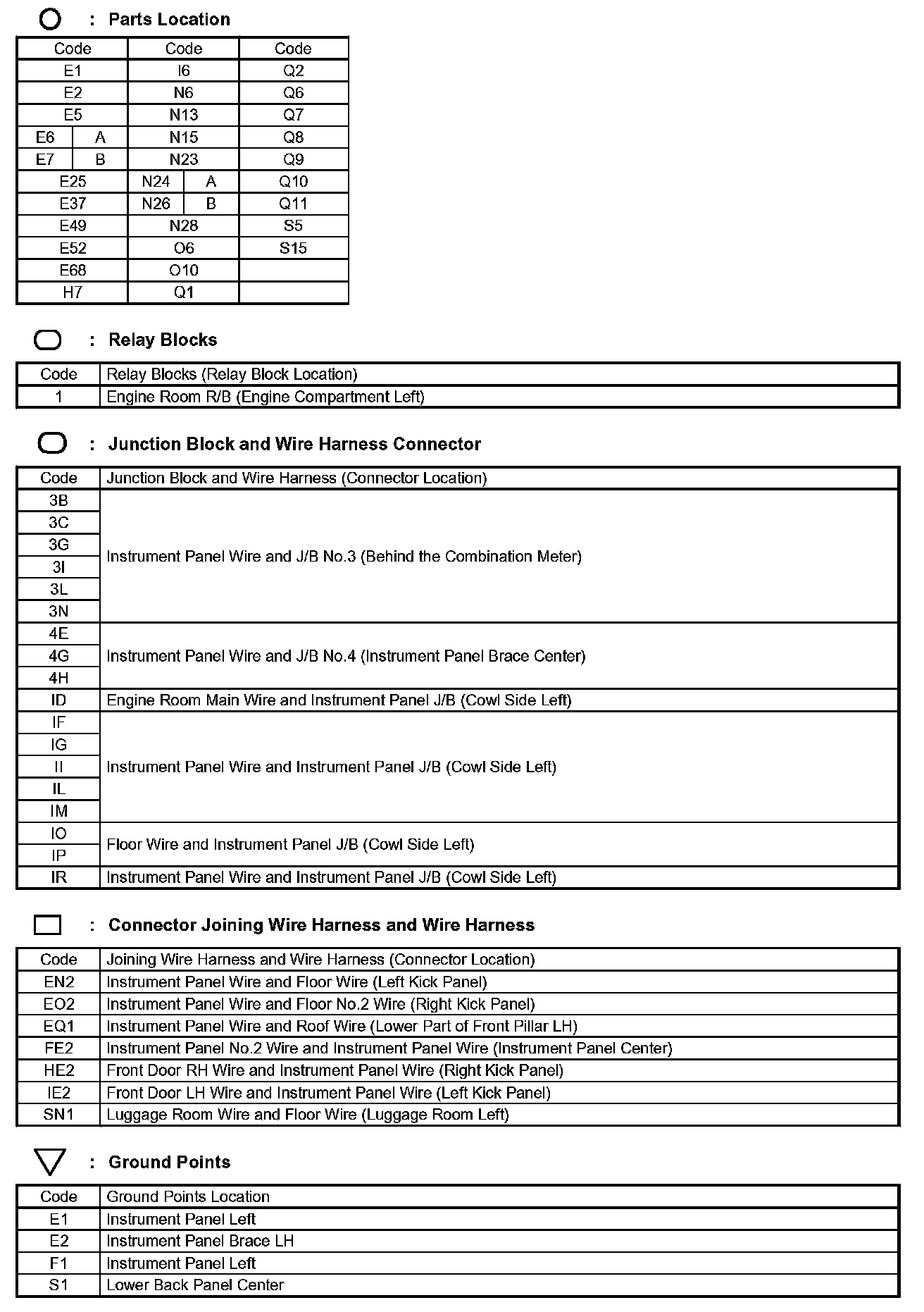

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
