Meter / Gauge System

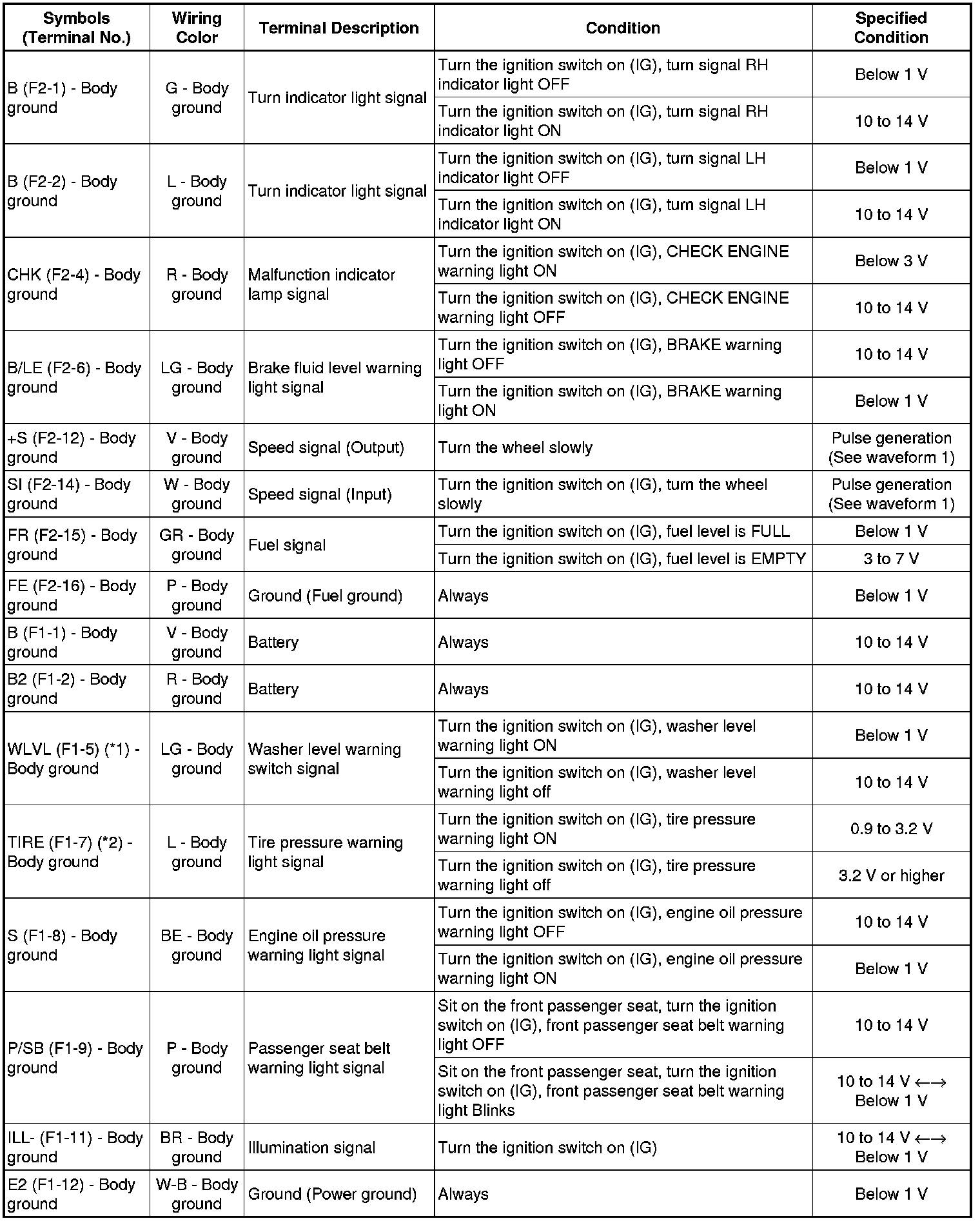

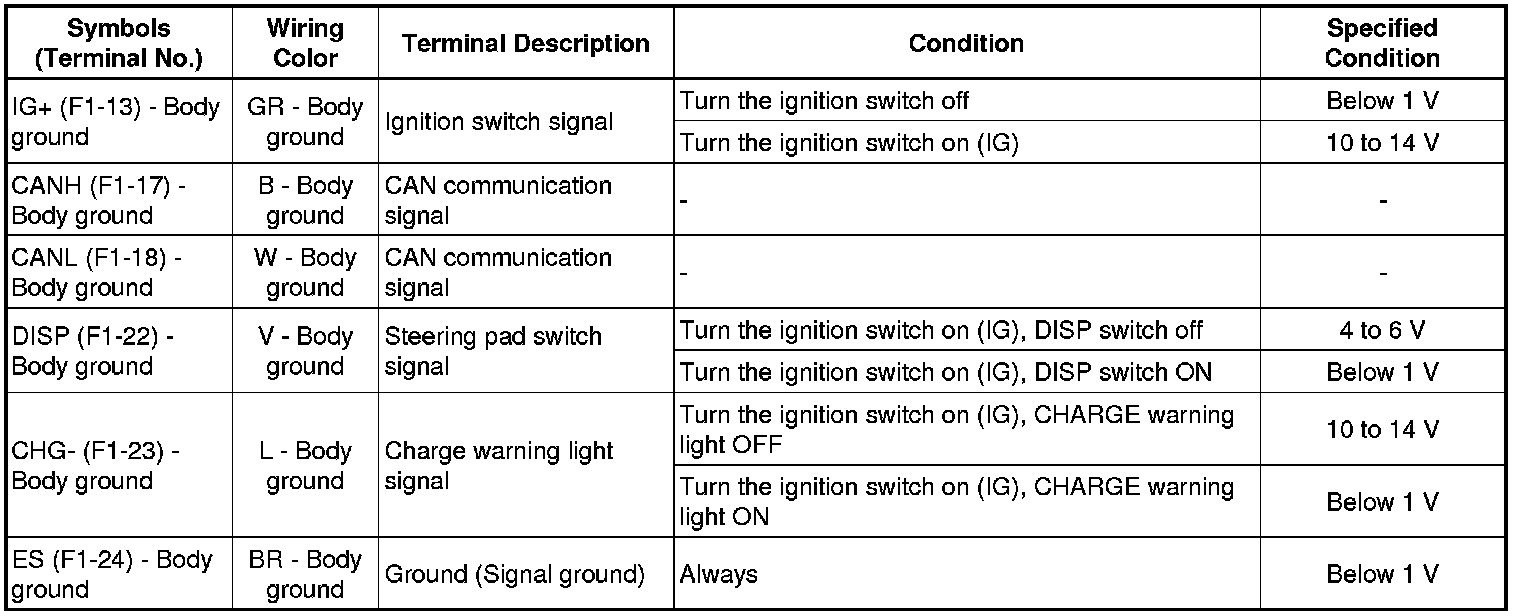

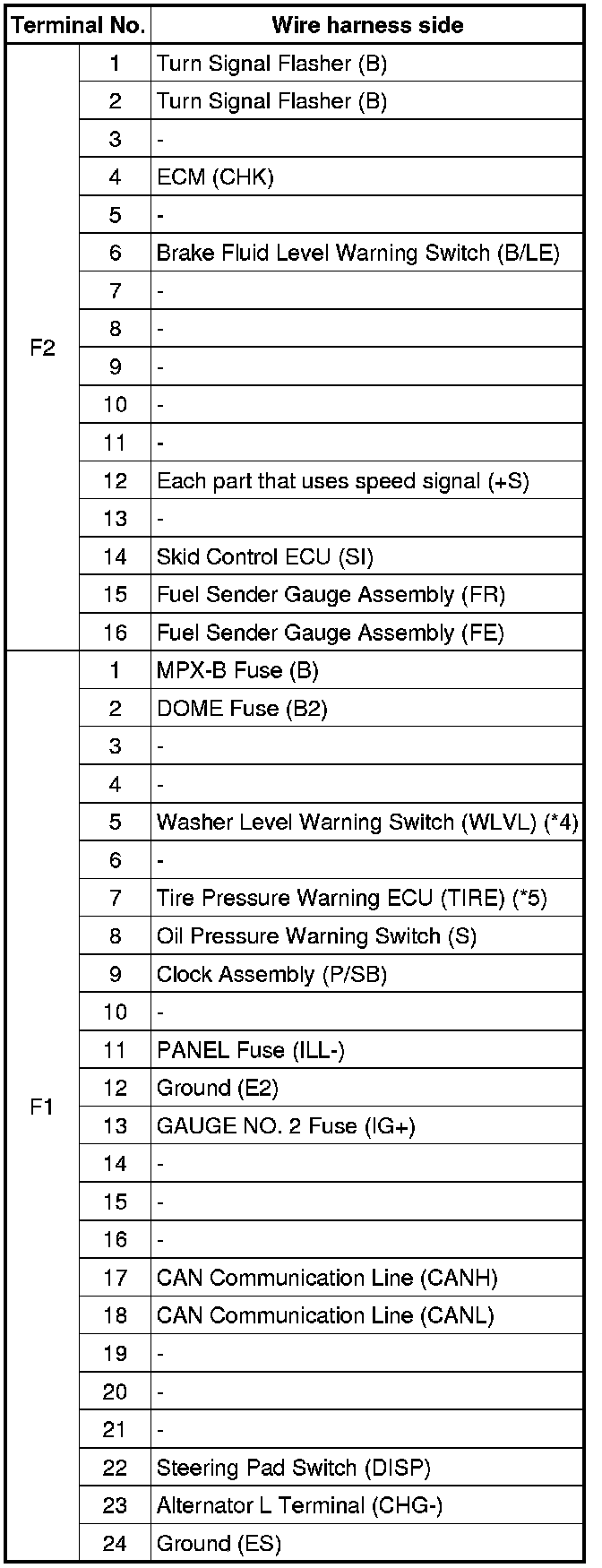

METER: METER / GAUGE SYSTEM: TERMINALS OF ECU 1.

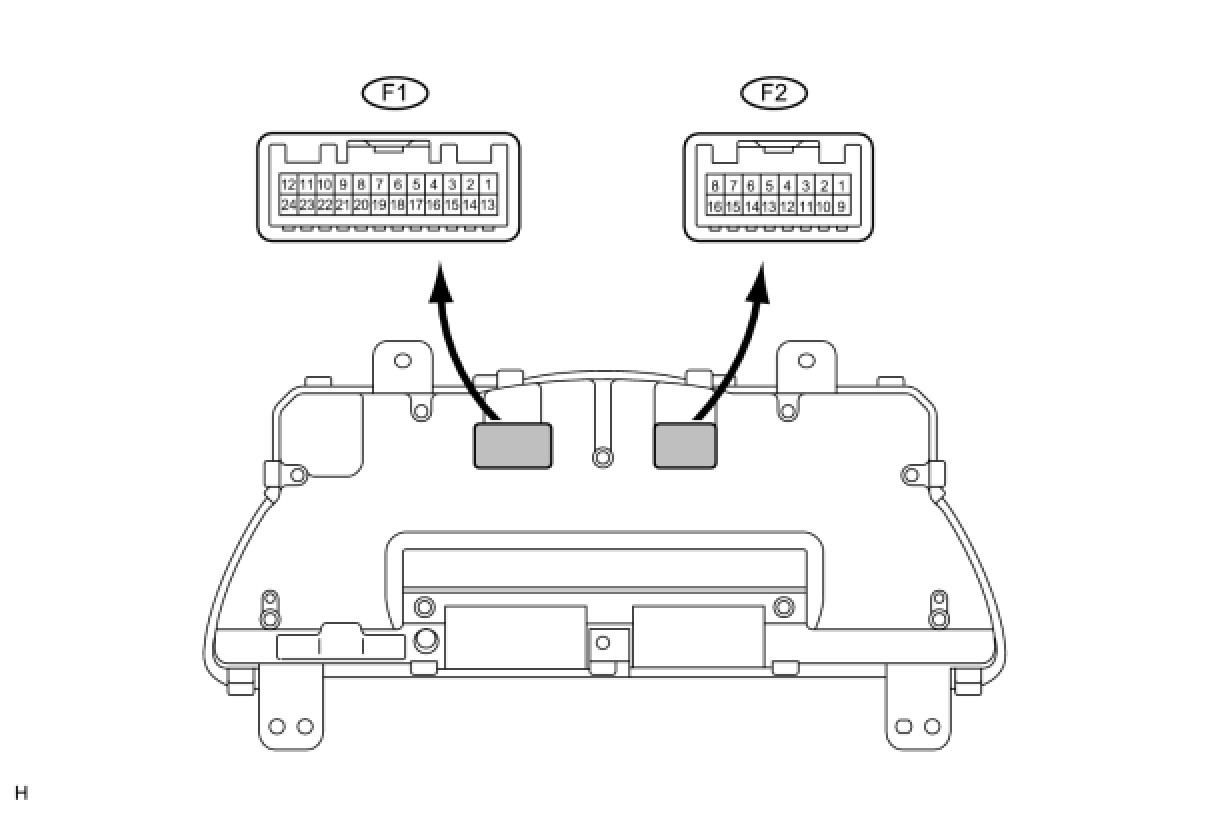

COMBINATION METER ASSEMBLY
*1: with Washer Level Warning Light
*2: with Tire Pressure Warning System
(a)
Waveform 1 (Reference): Using oscilloscope:
2.

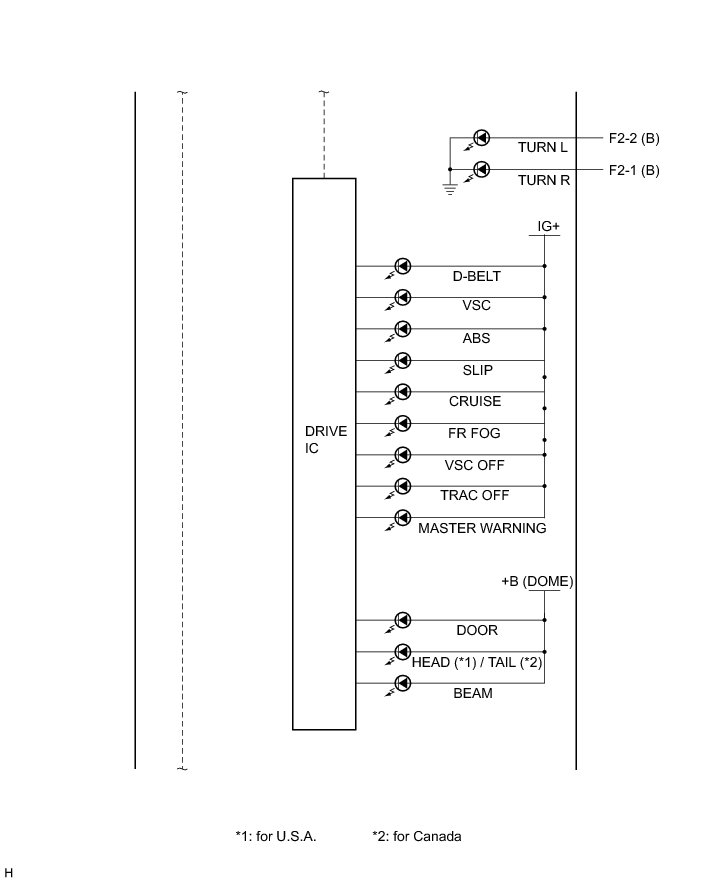

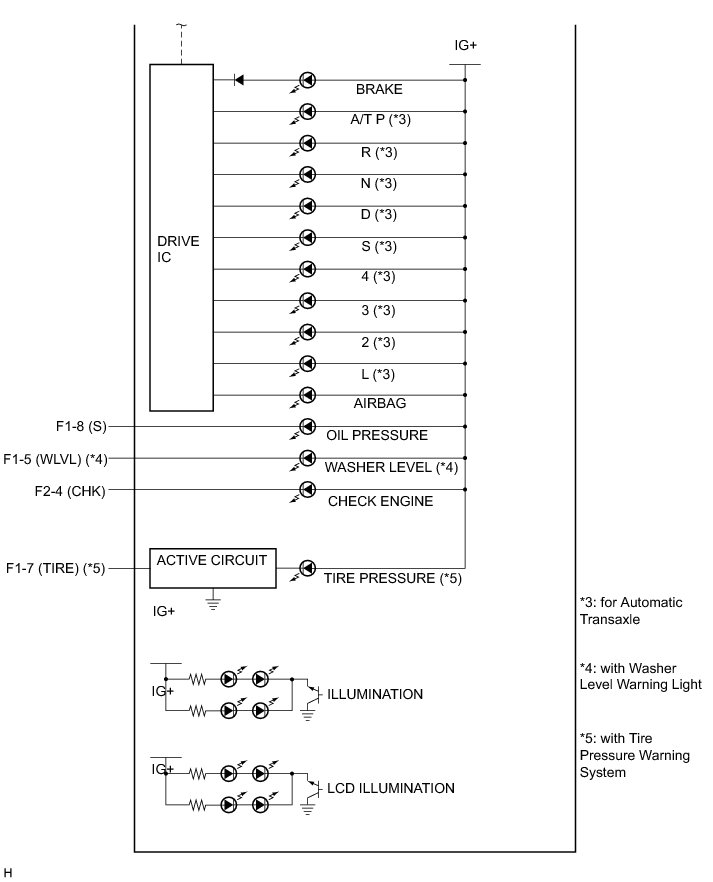

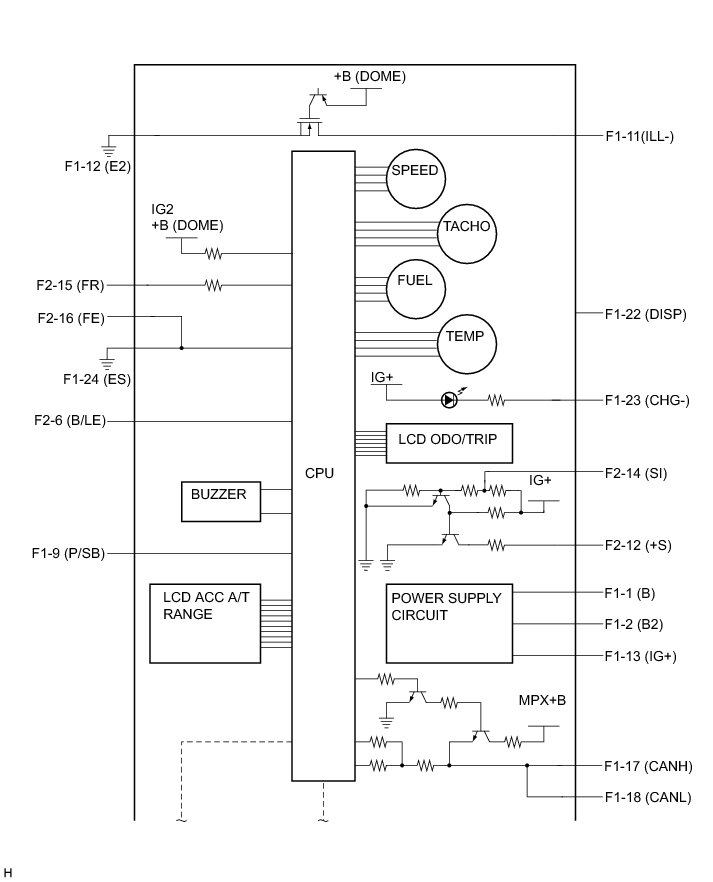

COMBINATION METER INNER CIRCUIT
*4: with Washer Level Warning Light
*5: with Tire Pressure Warning System
