Key Reminder Warning System
DOOR LOCK: KEY REMINDER WARNING SYSTEM: TERMINALS OF ECU 1.

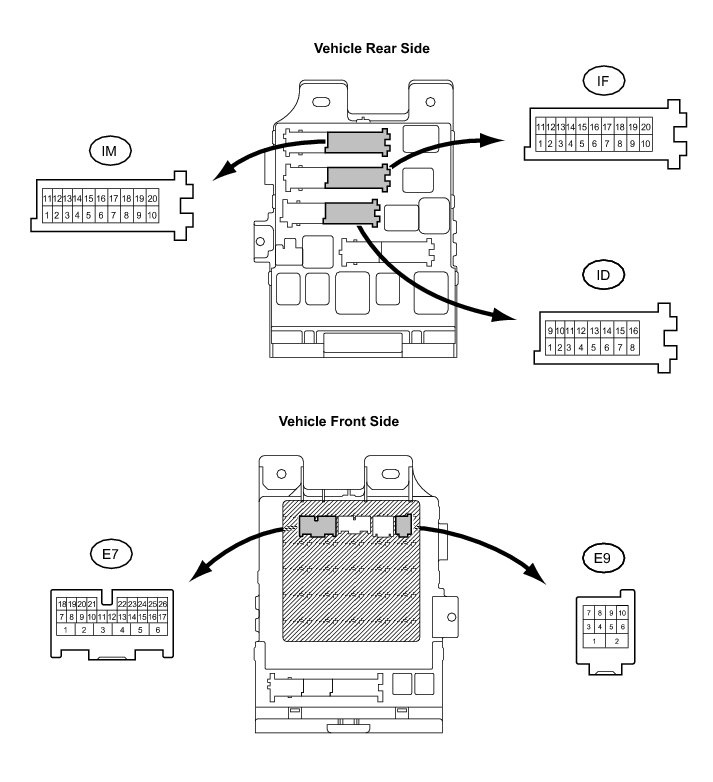

CHECK MAIN BODY ECU (INSTRUMENT PANEL J/B)
(a)
Disconnect the IF, IM and ID junction block connectors.
(b)
Disconnect the E7 and E9 main body ECU connectors.
(c)
Measure the resistance and voltage according to the value(s) in the table below.
HINT If the result is not as specified, there may be a malfunction on the wire harness side.
