Installation

METER: COMBINATION METER: INSTALLATION

1. INSTALL COMBINATION METER ASSEMBLY

(a) Using the tilt and telescopic functions, fully lower and extend the steering wheel.

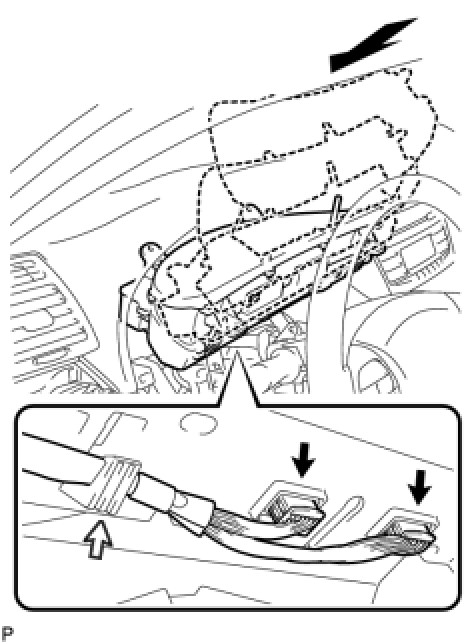

(b) Connect the 2 connectors as shown in the illustration.





(c) Secure the wire harness to the combination meter assembly.

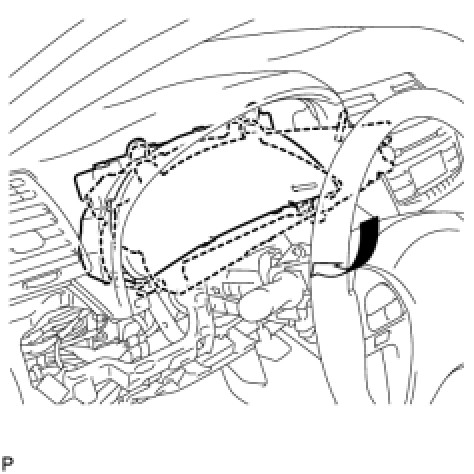

(d) Install the combination meter assembly as shown in the illustration.

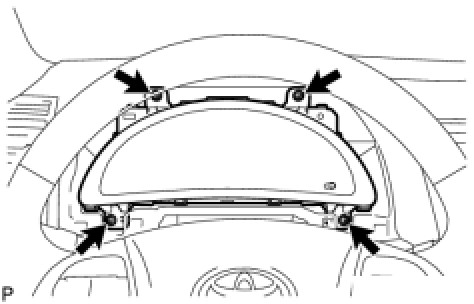

(e) Install the 4 screws.





2. INSTALL INSTRUMENT CLUSTER FINISH PANEL NO.1

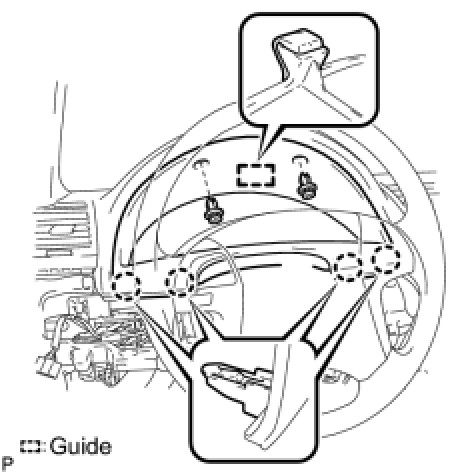

(a) Engage the 4 claws and the guide.





(b) Install the instrument cluster finish panel with the 2 clips.

3. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL (w/o Smart Key System) Installation

4. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL (w/ Smart Key System) Installation

5. INSTALL NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY Installation

6. INSTALL STEERING COLUMN COVER

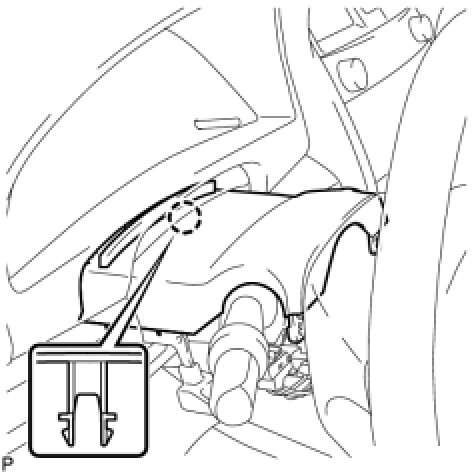

(a) Engage the claw and install the upper steering column cover.

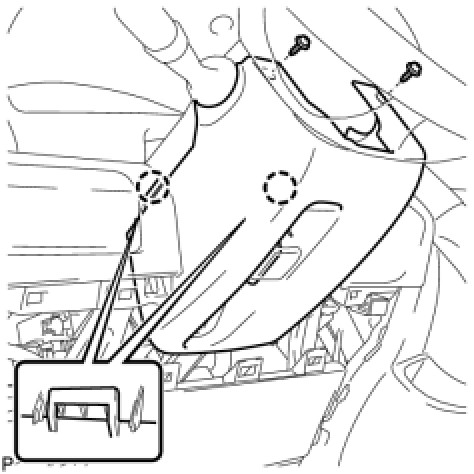

(b) Engage the 2 claws.





(c) Install the lower steering column cover with the 2 screws.

Torque : 2.0 Nm (20 kgf-cm, 18 in-lbf)

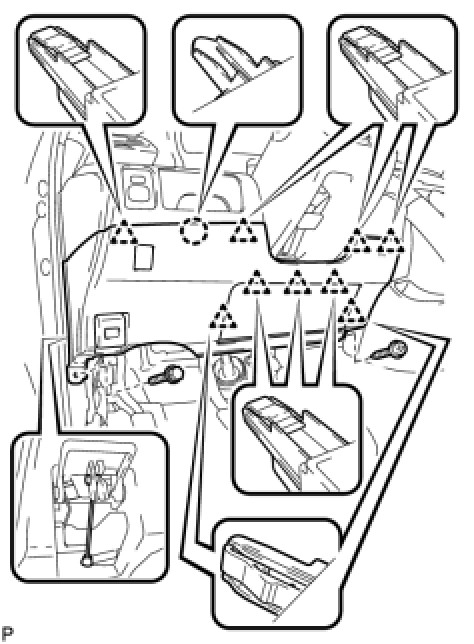

7. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH

(a) Install the air hose and connect the connector.

(b) Engage the claw and the 9 clips.





(c) Connect the hood lock control cable assembly.

(d) Install the lower instrument panel finish panel LH with the screw and bolt.

8. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH Installation

9. INSTALL FRONT DOOR SCUFF PLATE LH Installation

10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
