Disassembly

INSTRUMENT PANEL: INSTRUMENT PANEL SAFETY PAD: DISASSEMBLY

1. REMOVE SIDE NO. 1 DEFROSTER NOZZLE DUCT (for TMC Made)

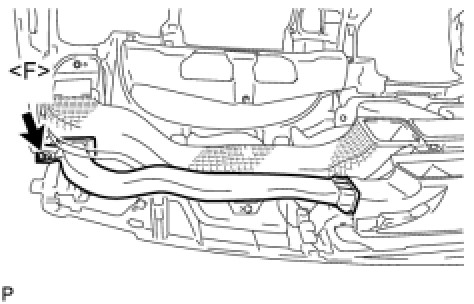

(a) Remove the screw [F] and the side No. 1 defroster nozzle duct.

2. REMOVE SIDE NO. 1 DEFROSTER NOZZLE DUCT (for TMMK Made)

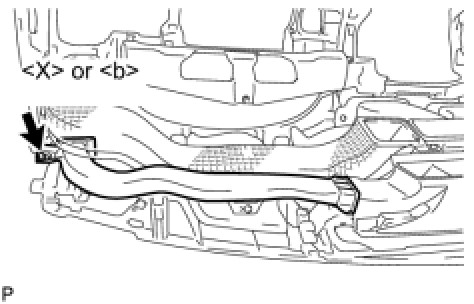

(a) Remove the screw [X] or [b] and the side No. 1 defroster nozzle duct.

3. REMOVE SIDE NO. 2 DEFROSTER NOZZLE DUCT (for TMC Made)

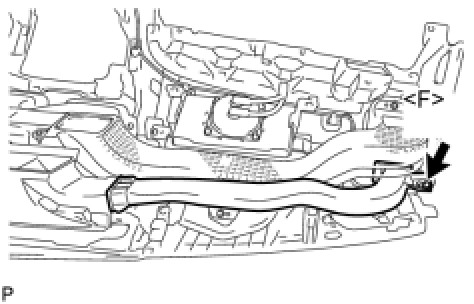

(a) Remove the screw [F] and the side No. 2 defroster nozzle duct.

4. REMOVE SIDE NO. 2 DEFROSTER NOZZLE DUCT (for TMMK Made)

(a) Remove the screw [X] or [b] and the side No. 2 defroster nozzle duct.

5. REMOVE DEFROSTER NOZZLE ASSEMBLY (for TMC Made)

(a) Remove the 3 screws [F] and the defroster nozzle assembly.

6. REMOVE DEFROSTER NOZZLE ASSEMBLY (for TMMK Made)

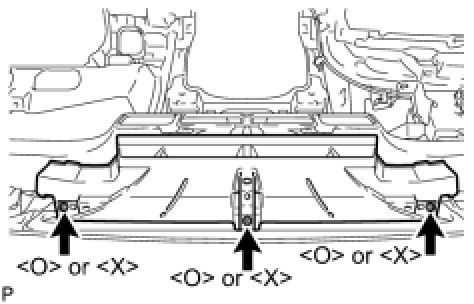

(a) Remove the 3 screws [O] or [X] and the defroster nozzle assembly.

7. REMOVE NO. 1 HEATER TO REGISTER DUCT (for TMC Made)

(a) Remove the 3 screws [F] and the No. 1 heater to register duct.

8. REMOVE NO. 1 HEATER TO REGISTER DUCT (for TMMK Made)

(a) Remove the 3 screws [O] or [X] and the No. 1 heater to register duct.

9. REMOVE NO. 3 HEATER TO REGISTER DUCT (for TMC Made)

(a) Remove the 3 screws [F] and the No. 3 heater to register duct.

10. REMOVE NO. 3 HEATER TO REGISTER DUCT (for TMMK Made)

(a) Remove the 3 screws [O] or [X] and the No. 3 heater to register duct.

11. REMOVE NO. 2 HEATER TO REGISTER DUCT (for TMC Made)

(a) Remove the 2 screws [F] and the No. 2 heater to register duct.

12. REMOVE NO. 2 HEATER TO REGISTER DUCT (for TMMK Made)

(a) Remove the 2 screws [O] or [X] and the No. 2 heater to register duct.

13. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY Removal

14. REMOVE NAVIGATION ANTENNA ASSEMBLY Removal

15. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY Removal

16. REMOVE GLOVE BOX LIGHT ASSEMBLY

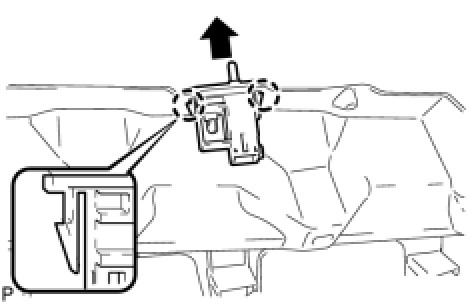

(a) Disengage the 2 claws and remove the glove box light assembly.

17. REMOVE PLASMACLUSTER (w/ Plasmacluster) Removal

18. REMOVE NO. 1 INSTRUMENT PANEL PIN (for TMMK Made)

(a) Remove the 2 screws [X] and 2 No. 1 instrument panel pins.
