Disassembly





SEAT: REAR SEAT ASSEMBLY (for Fold Down Seat Type): DISASSEMBLY

1. REMOVE REAR BENCH TYPE SEAT CUSHION COVER

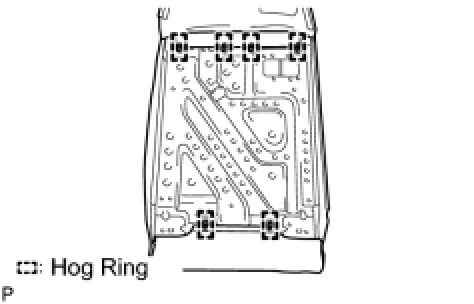

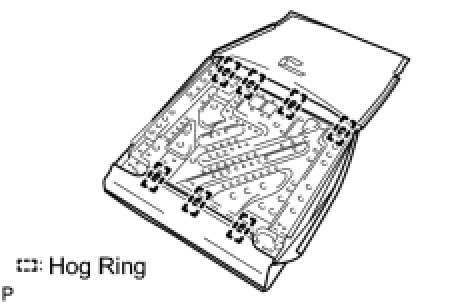

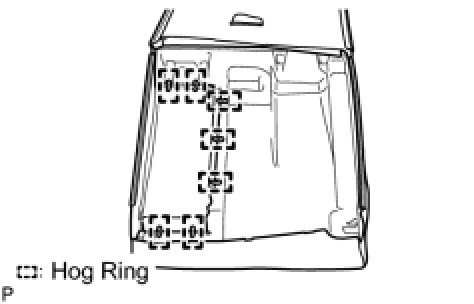

(a) Remove the 36 hog rings.

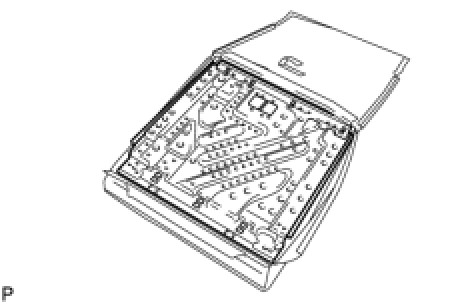

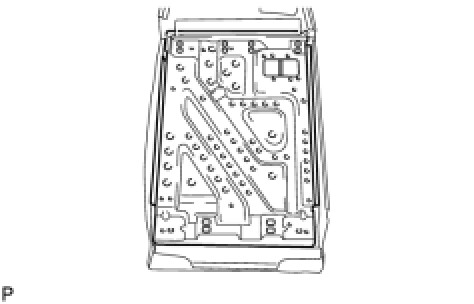

(b) Remove the 16 hog rings and rear bench type seat cushion cover.





2. REMOVE NO. 1 SEAT ARMREST CAP

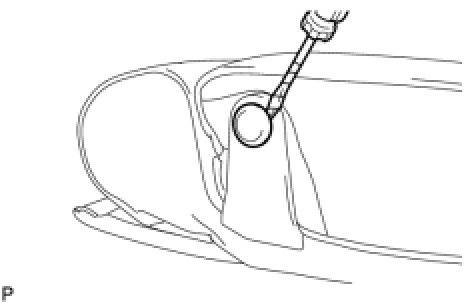

(a) Using a screwdriver, remove the No. 1 seat armrest cap.





HINT
Tape the screwdriver tip before use.

3. REMOVE REAR SEAT BACK HINGE COVER

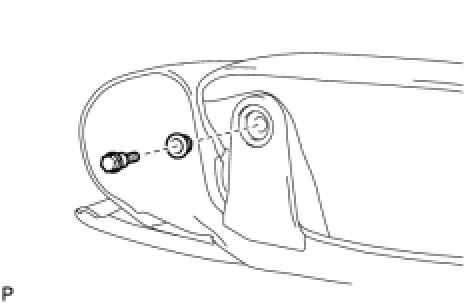

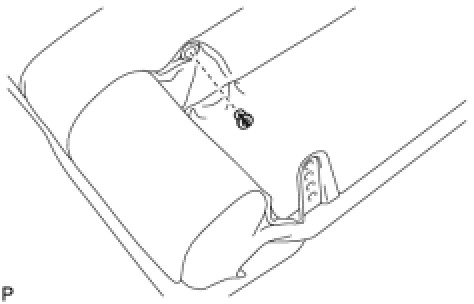

(a) Remove the bolt and bush.





(b) Remove the rear seat back hinge cover.





4. REMOVE REAR CENTER SEAT ARMREST ASSEMBLY

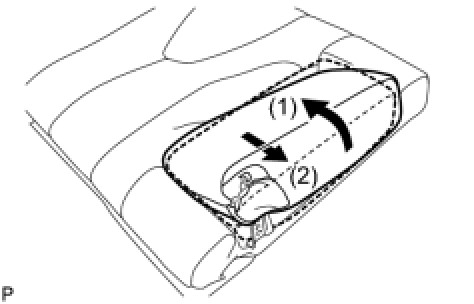

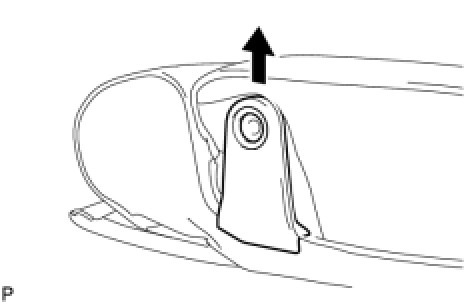

(a) Remove the rear center seat armrest assembly as shown in the illustration.





(b) Remove the bush.





5. REMOVE REAR SEAT BELT HOOK

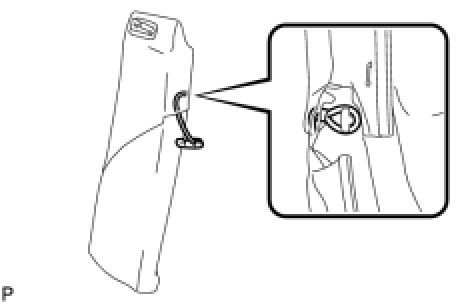

(a) Remove the rear seat belt hook.





HINT
Use the same procedures for the RH side and LH side.

6. REMOVE REAR SEAT SHOULDER BELT GUIDE LH

(a) Seat Back:

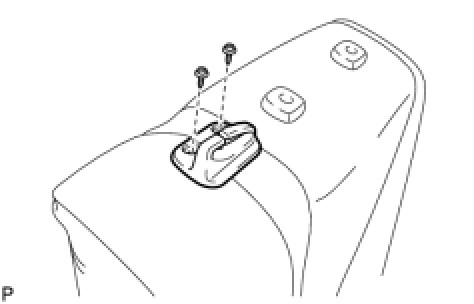

(1) Remove the 2 screws and rear seat shoulder belt guide LH.





(b) Side Seat Back:

(1) Remove the 2 screws and rear seat shoulder belt guide LH.





7. REMOVE REAR SEAT SHOULDER BELT GUIDE RH

(a) Remove the 2 screws and rear seat shoulder belt guide RH.





8. REMOVE REAR SEAT BACK LOCK BEZEL UPPER (for RH Side)

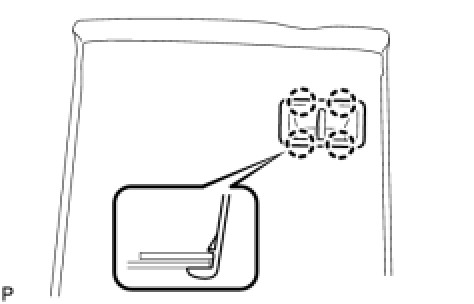

(a) Disengage the 4 claws and remove the rear seat back lock bezel upper.





9. REMOVE REAR SEAT HEADREST SUPPORT (for RH Side)

(a) Disengage the 2 hooks and separate the rear separate type seat back cover.





(b) Remove the 7 hog rings.

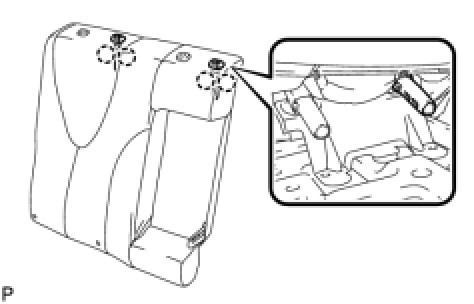

(c) Disengage the 4 claws and remove the 2 rear seat headrest supports.





10. REMOVE REAR SEAT HEADREST SUPPORT (for RH Side)

11. REMOVE REAR SEAT BACK LOCK BEZEL UPPER (for LH Side)

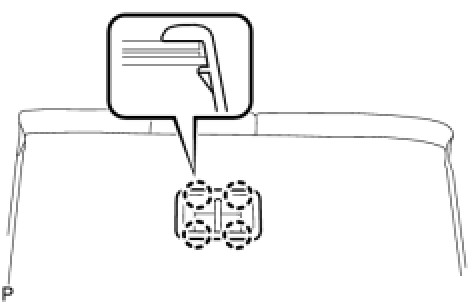

(a) Disengage the 4 claws and remove the rear seat back lock bezel upper.





12. REMOVE REAR SEAT HEADREST SUPPORT (for LH Side)

(a) Disengage the 2 hooks and separate the rear separate type seat back cover.





(b) Remove the 6 hog rings.





(c) Disengage the 2 claws and remove the rear seat headrest support.





13. REMOVE REAR SEAT HEADREST SUPPORT (for LH Side)

14. REMOVE REAR SEAT BACK FRAME SUB-ASSEMBLY RH

(a) Remove the rear seat back frame sub-assembly RH.





15. REMOVE REAR SEAT BACK FRAME SUB-ASSEMBLY LH

(a) Remove the rear seat back frame sub-assembly LH.





16. REMOVE REAR SEPARATE TYPE SEAT BACK COVER (for RH Side)

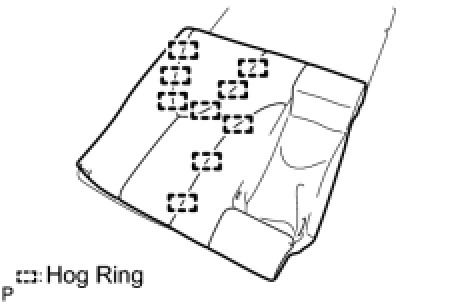

(a) Remove the 7 hog rings.

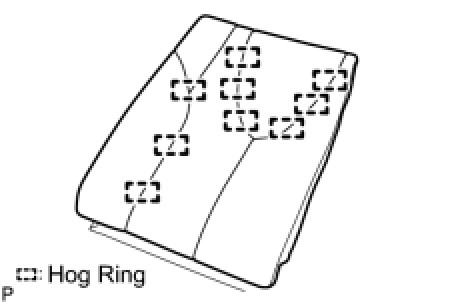

(b) Remove the 9 hog rings and rear separate type seat back cover.





17. REMOVE REAR SEPARATE TYPE SEAT BACK COVER (for LH Side)

(a) Remove the 9 hog rings and rear separate type seat back cover.
