Reassembly





SEAT: REAR SEAT ASSEMBLY (for Fixed Type): REASSEMBLY

HINT
A bolt without a torque specification is shown in the standard bolt chart. Standard Bolt - Specified Torque For Standard Bolts

1. INSTALL REAR BENCH TYPE SEAT BACK COVER

NOTICE:
* Be careful not to damage the cover.
* When installing the hog rings, take care to minimize wrinkles as much as possible.

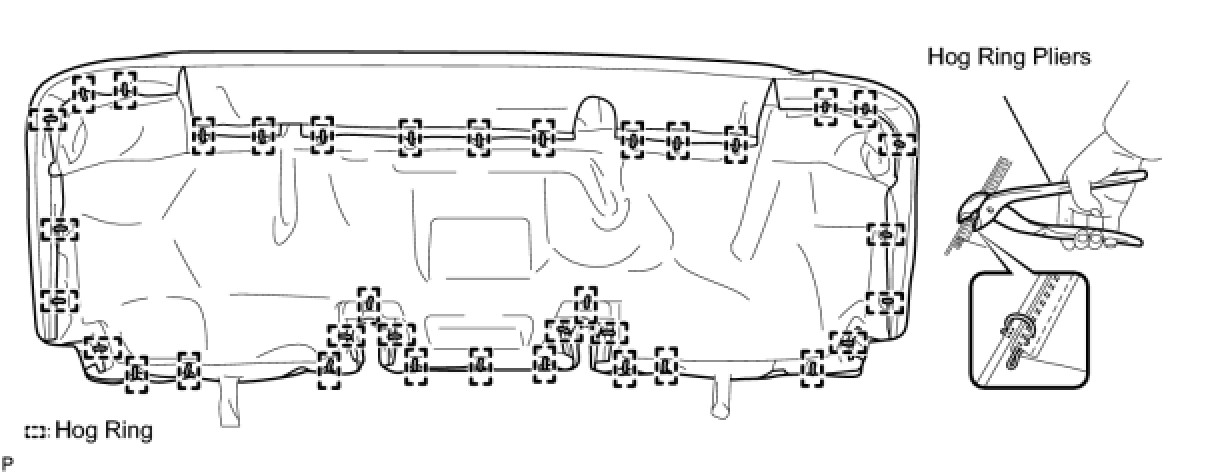

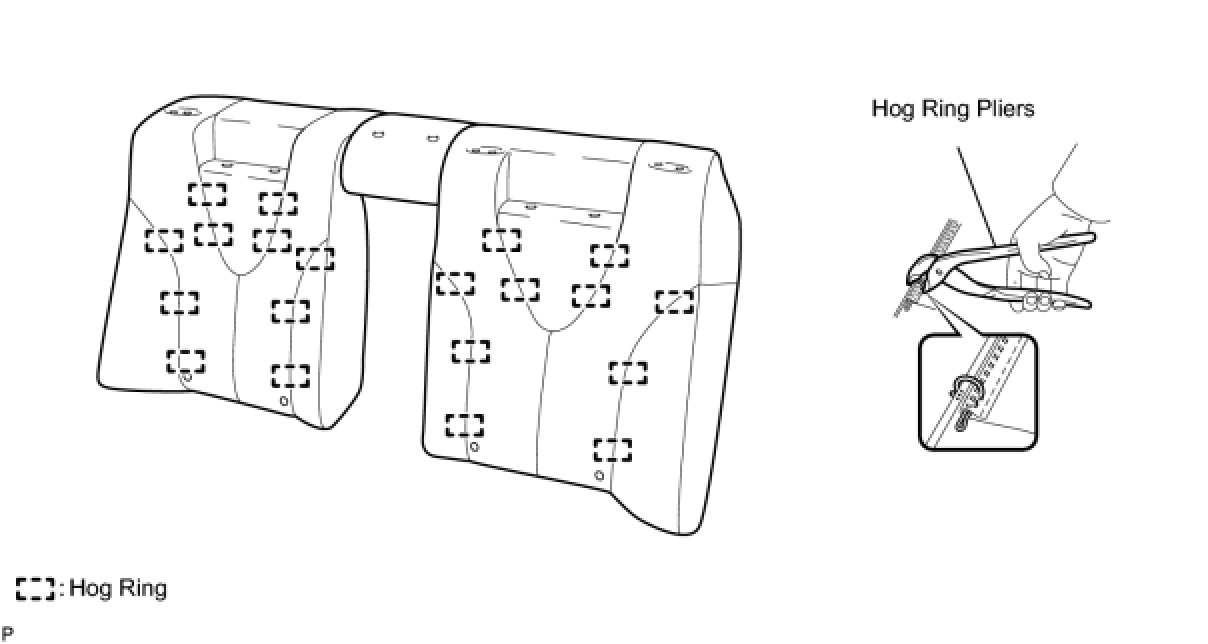

(a) Using hog ring pliers, install 20 new hog rings.

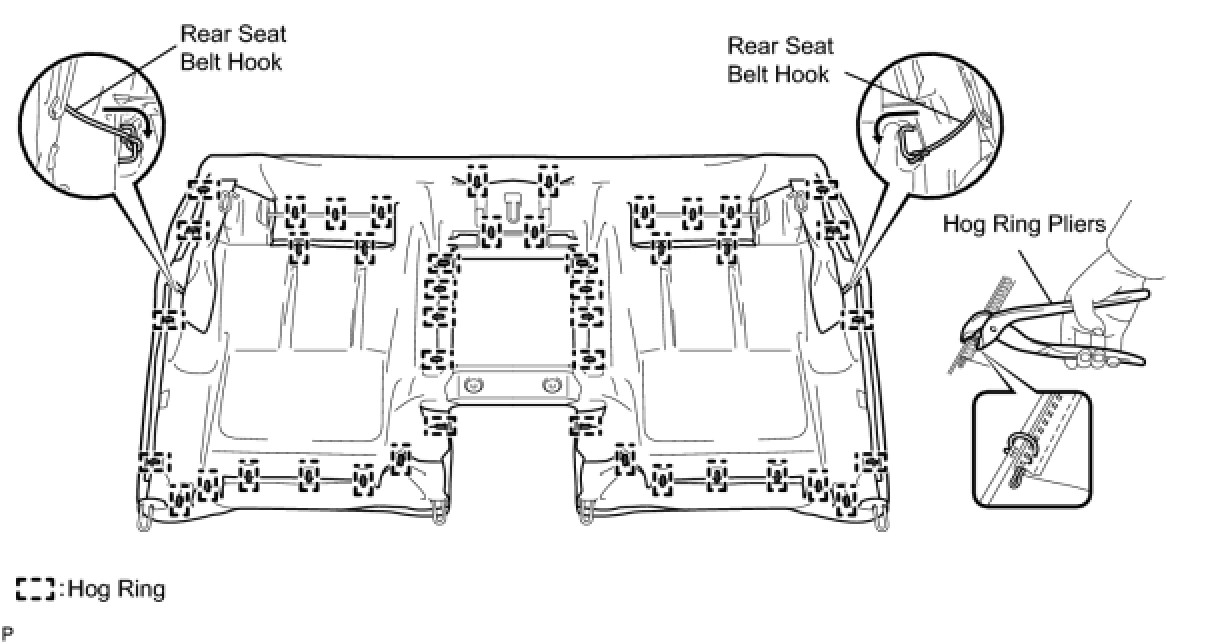

(b) Using hog ring pliers, install the rear bench type seat back cover to the seat back frame (with pad) with 44 new hog rings.





2. INSTALL REAR SEAT SHOULDER BELT GUIDE LH

3. INSTALL REAR SEAT SHOULDER BELT GUIDE RH

4. INSTALL REAR SEAT HEADREST SUPPORT

5. INSTALL REAR SEAT HEADREST SUPPORT

6. INSTALL INNER CENTER SEAT ARMREST PLATE

7. INSTALL CUP HOLDER

8. INSTALL CENTER SEAT ARMREST BRACKET SUB-ASSEMBLY

9. INSTALL ARMREST ASSEMBLY

10. INSTALL REAR BENCH TYPE SEAT CUSHION COVER

NOTICE:
* Be careful not to damage the cover.
* When installing the hog rings, take care to minimize wrinkles as much as possible.

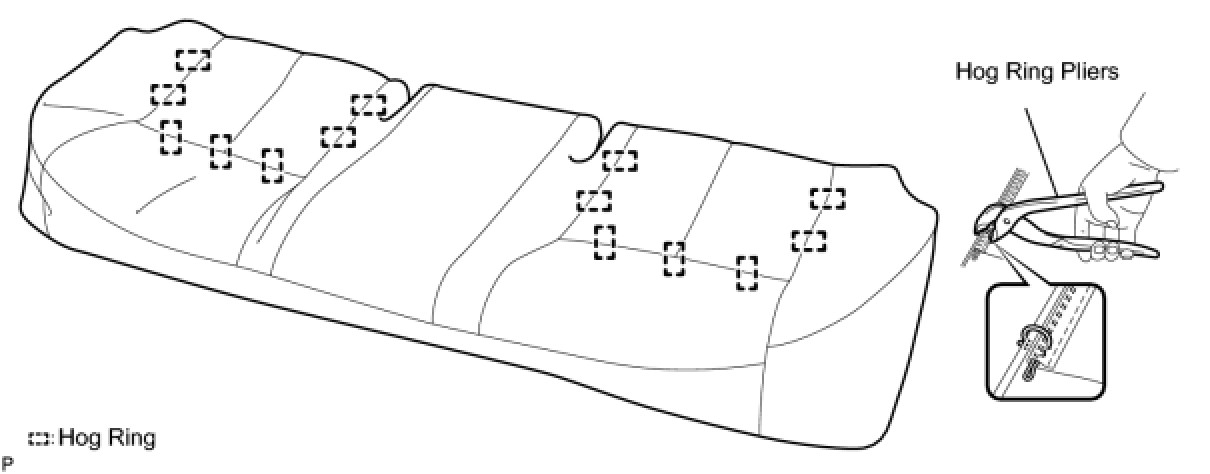

(a) Using hog ring pliers, install 14 new hog rings.





(b) Using hog ring pliers, install the rear seat cushion cover to the rear seat cushion pad with 36 new hog rings.
