Disassembly

SEAT: REAR SEAT ASSEMBLY (for Fixed Type): DISASSEMBLY

1. REMOVE REAR BENCH TYPE SEAT CUSHION COVER

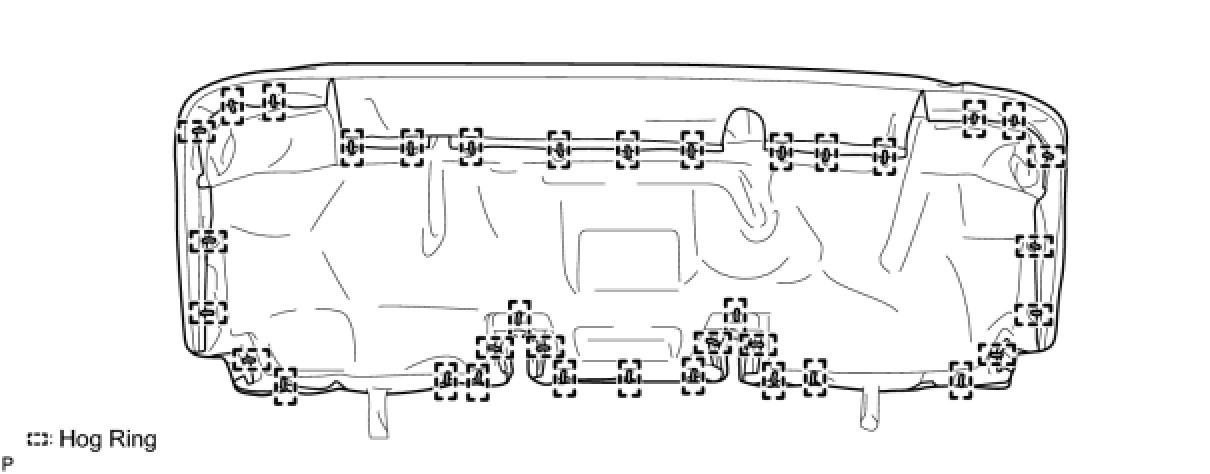

(a) Remove the 36 hog rings.

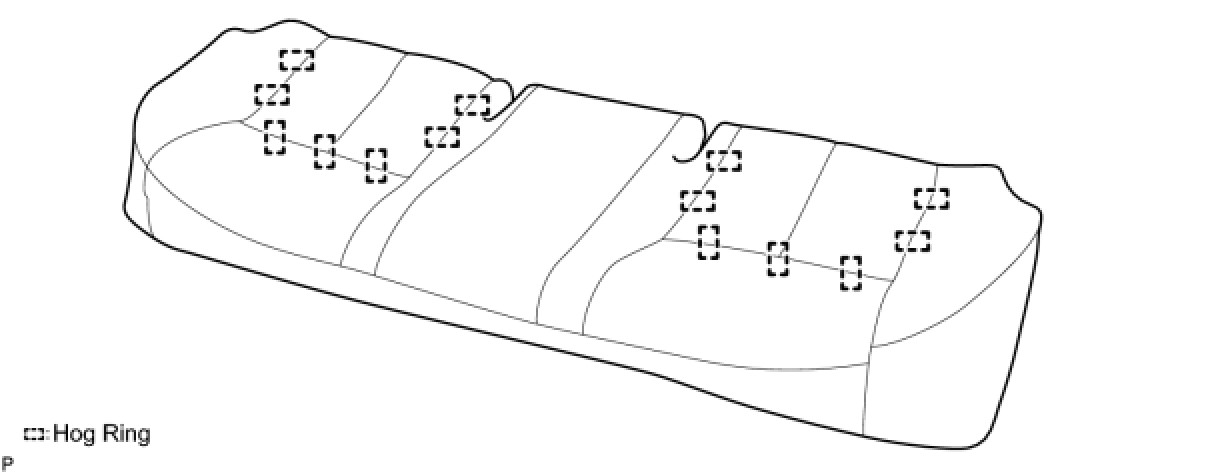

(b) Remove the 14 hog rings and rear bench type seat cushion cover from the seat cushion frame (with pad).

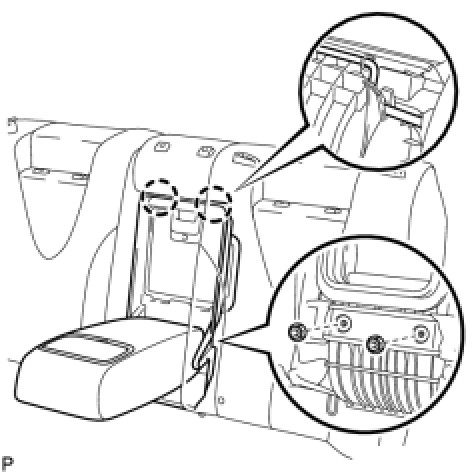

2. REMOVE ARMREST ASSEMBLY

(a) Remove the 2 nuts.





(b) Disengage the 2 claws and remove the armrest assembly.

3. REMOVE CENTER SEAT ARMREST BRACKET SUB-ASSEMBLY

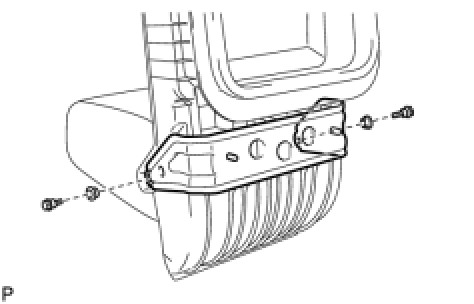

(a) Remove the 2 bolts and bushes.





(b) Remove the center seat armrest bracket sub-assembly.

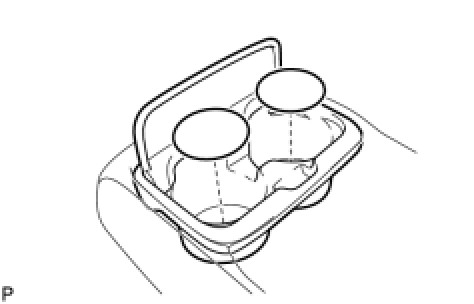

4. REMOVE CUP HOLDER

(a) Remove the 2 mats.

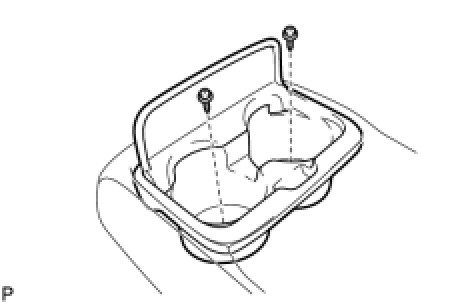

(b) Remove the 2 screws and cup holder.





5. REMOVE INNER CENTER SEAT ARMREST PLATE

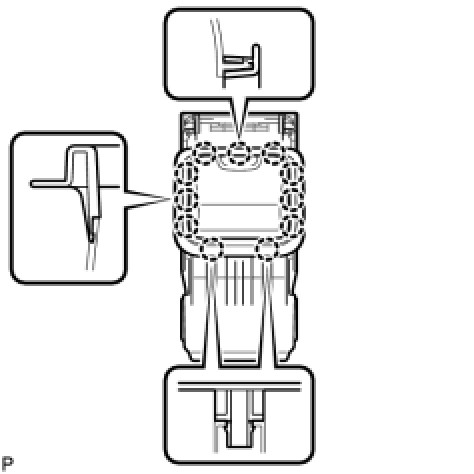

(a) Disengage the 11 claws and remove the inner center seat armrest plate.

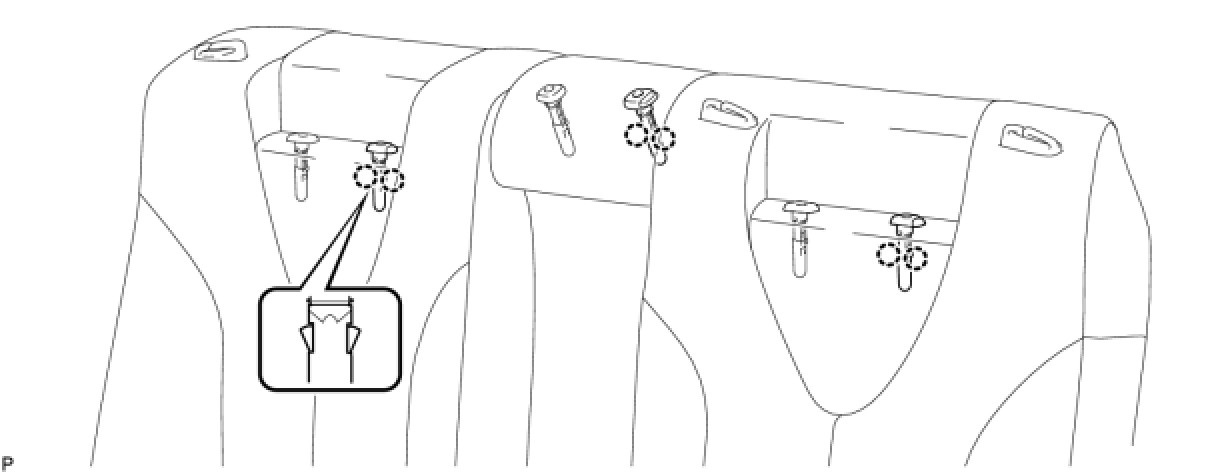

6. REMOVE REAR SEAT HEADREST SUPPORT

(a) Disengage the 6 claws and remove the 3 rear seat headrest supports.





7. REMOVE REAR SEAT HEADREST SUPPORT

8. REMOVE REAR SEAT SHOULDER BELT GUIDE RH

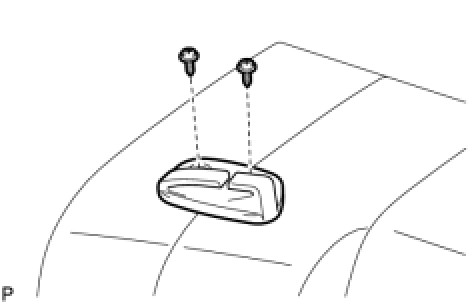

(a) Remove the 2 screws and rear seat shoulder belt guide RH.





9. REMOVE REAR SEAT SHOULDER BELT GUIDE LH

HINT
Use the same procedures for the RH side and LH side.

10. REMOVE REAR BENCH TYPE SEAT BACK COVER

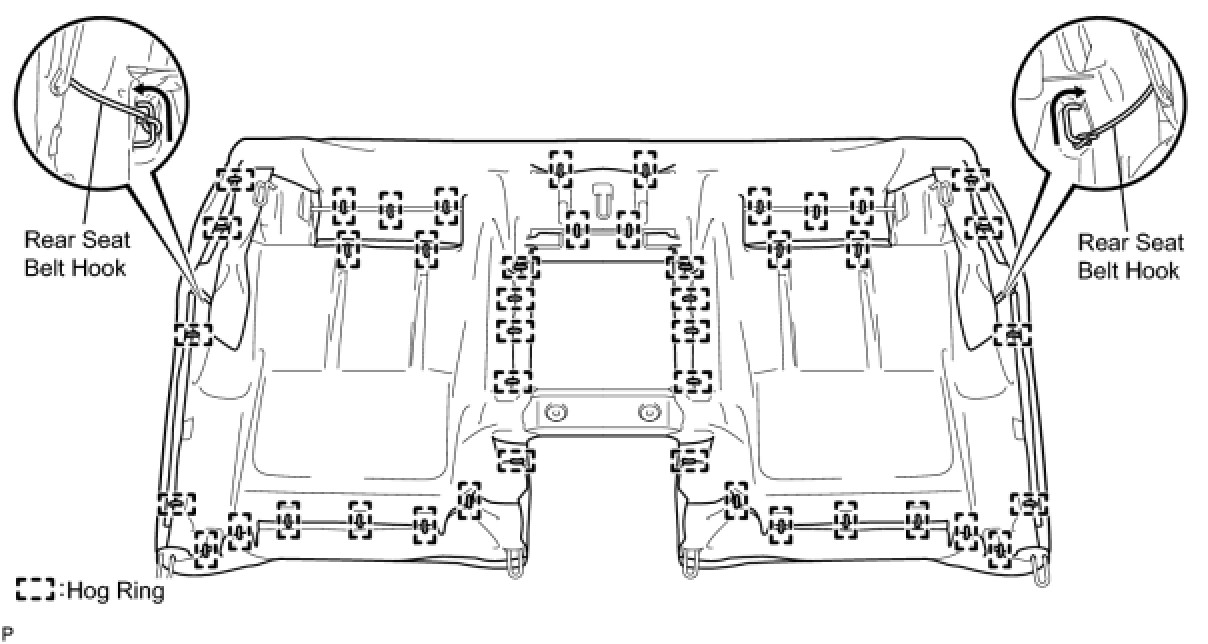

(a) Remove the 44 hog rings and strap guide.





(b) Remove the 2 rear seat belt hooks.

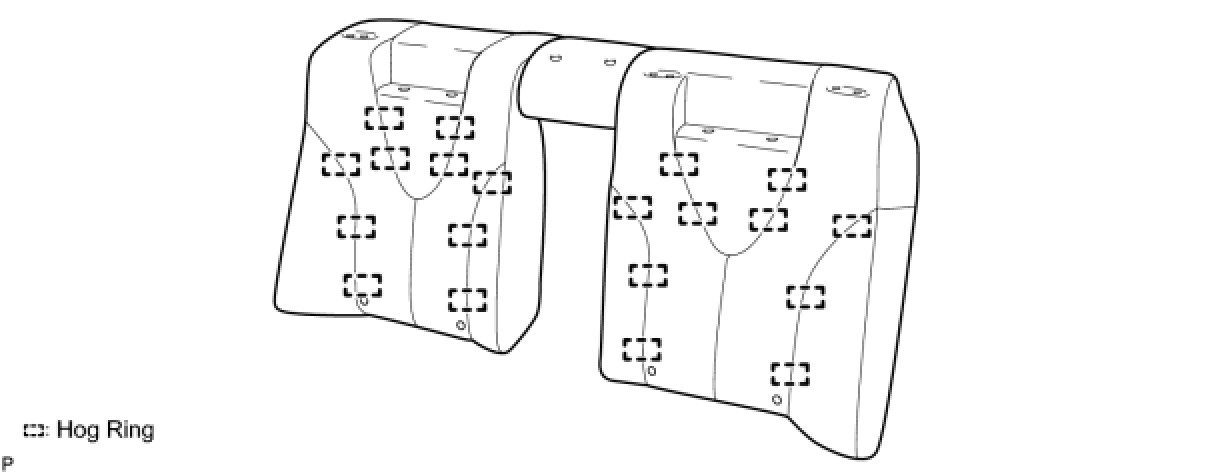

(c) Remove the 20 hog rings and seat back cover from the seat back frame (with pad).
