Removal

SEAT: REAR SEAT ASSEMBLY (for Reclining Seat Type): REMOVAL

1. REMOVE REAR SEAT CUSHION ASSEMBLY

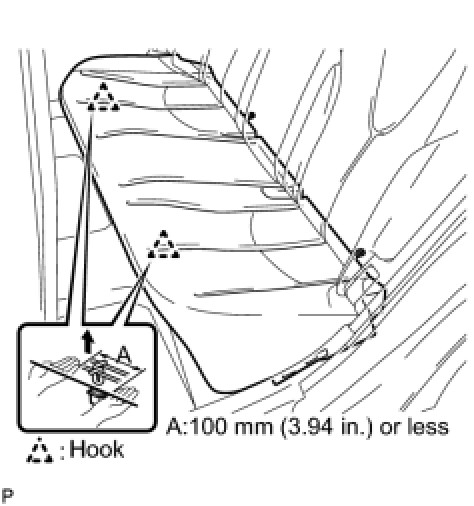

(a) Detach the 2 front hooks of the seat cushion from the vehicle body.





NOTICE:
Follow the instructions below carefully as the cushion frame can be deformed easily.

(1) Choose a hook to detach first. Place your hands near the hook as shown in the illustration. Then lift the seat cushion to detach the hook.

(2) Repeat the step above for the other hook.

(b) Remove the seat cushion.

2. REMOVE REAR SEAT HEADREST ASSEMBLY

3. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY

4. REMOVE REAR SEAT BACK COVER

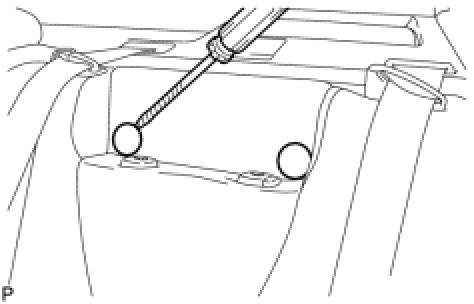

(a) Using a screwdriver, detach the claws and remove the 2 rear seat back covers.





NOTICE:
* Tape the screwdriver tip before use.
* Use the same procedures for the RH side and LH side.

5. REMOVE SEPARATE TYPE REAR SEAT BACK ASSEMBLY LH

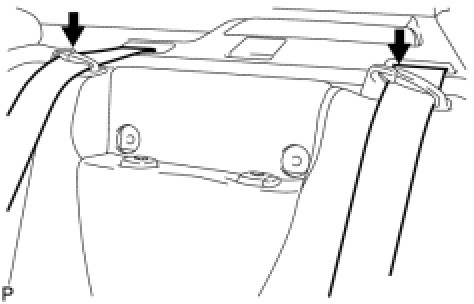

(a) Separate the 2 rear seat belts.

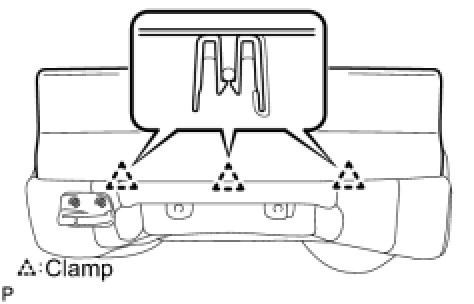

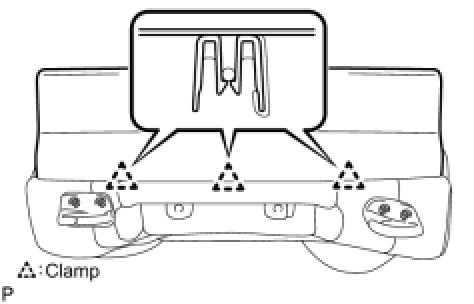

(b) Disengage the 3 clamps and then separate the cover.

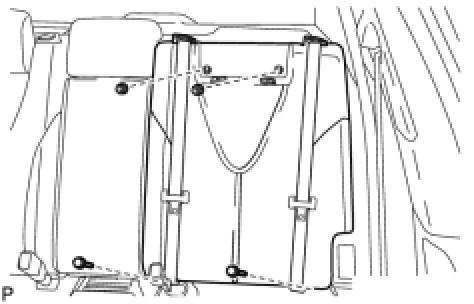

(c) Remove the 2 bolts and 2 nuts and separate type rear seat back assembly LH.





6. REMOVE SEPARATE TYPE REAR SEAT BACK ASSEMBLY RH

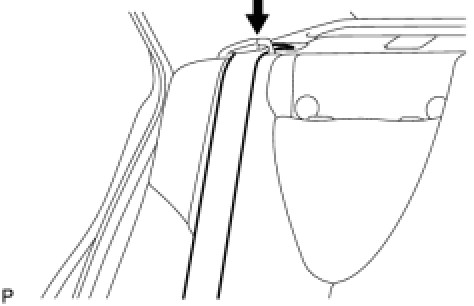

(a) Separate the rear seat belt.





(b) Disengage the 3 clamps and then separate the cover.

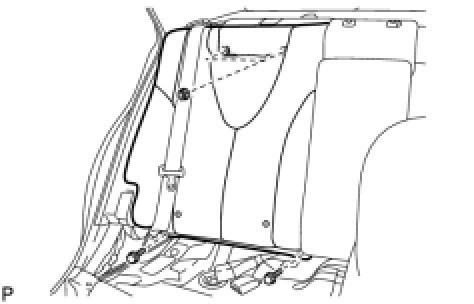

(c) Remove the 2 bolts and 2 nuts and separate type rear seat back assembly RH.





7. REMOVE CENTER SEAT BACK ASSEMBLY

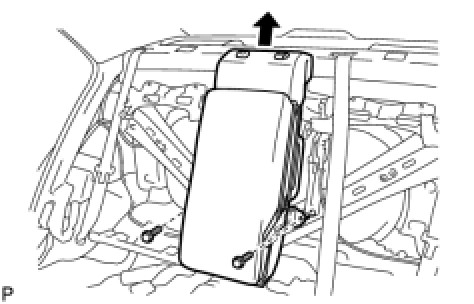

(a) Remove the 2 bolts and center seat back assembly.
