Removal

SEAT: REAR SEAT ASSEMBLY (for Fold Down Seat Type): REMOVAL

1. REMOVE REAR SEAT CUSHION ASSEMBLY

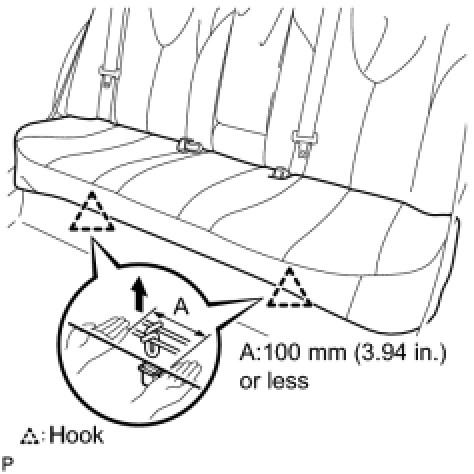

(a) Detach the 2 front hooks of the seat cushion from the vehicle body.





NOTICE:
Follow the instructions below carefully as the cushion frame can be deformed easily.

(1) Choose a hook to detach first. Place your hands near the hook as shown in the illustration. Then lift the seat cushion to detach the hook.

(2) Repeat the step above for the other hook.

(b) Remove the seat cushion.

2. REMOVE REAR SEAT HEADREST ASSEMBLY

(a) Remove the 2 rear seat headrest assemblies.

3. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY

(a) Remove the rear center seat headrest assembly.

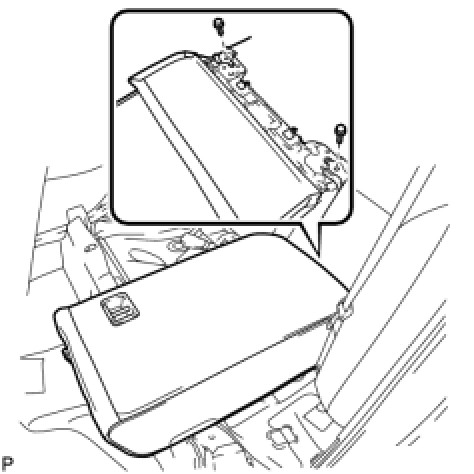

4. REMOVE SEPARATE TYPE REAR SEAT BACK ASSEMBLY RH

(a) Remove the 2 bolts and separate type rear seat back assembly RH.





5. REMOVE SEPARATE TYPE REAR SEAT BACK ASSEMBLY LH

(a) Remove the 2 bolts and separate type rear seat back assembly LH.

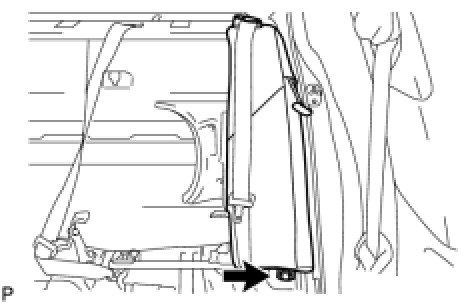

6. REMOVE REAR SIDE SEAT BACK ASSEMBLY LH

(a) Remove the bolt and rear side seat back assembly LH.





7. REMOVE REAR SIDE SEAT BACK ASSEMBLY RH

HINT
Use the same procedures for the RH side and LH side.
