Sunroof / Moonroof: Description and Operation

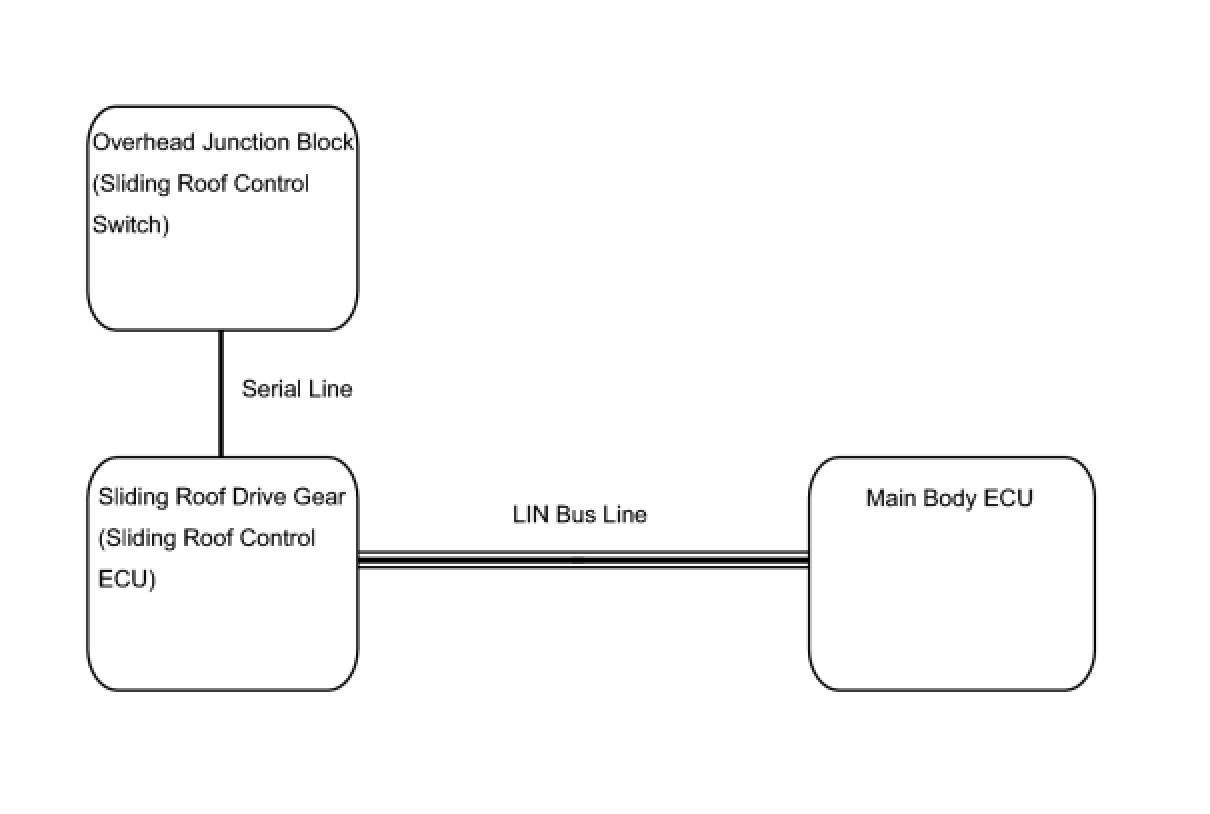

SLIDING ROOF: SLIDING ROOF SYSTEM: SYSTEM DIAGRAMCommunication table 1.
GENERAL
This system has the following functions: manual slide open and close; auto slide open and close; manual tilt up and down; auto tilt up and down; jam protection; and key off operation.
2.
FUNCTION OF MAIN COMPONENT
3.
SYSTEM OPERATION

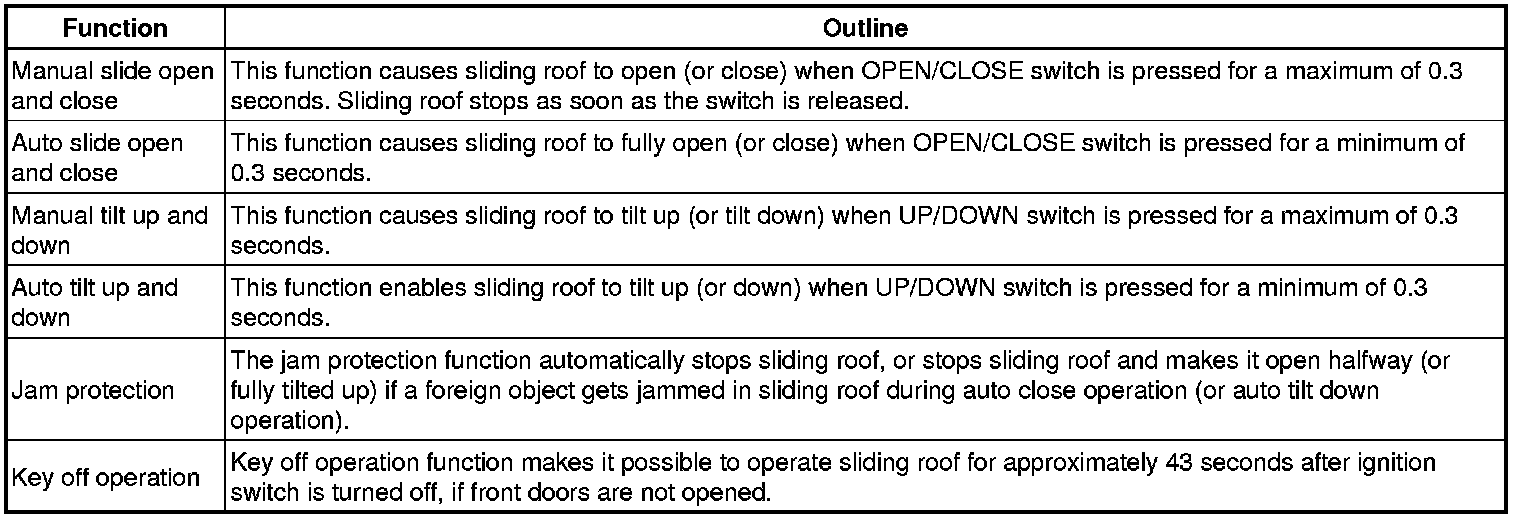

The sliding roof has the following features:
