Disassembly

INTERIOR: REAR CONSOLE BOX: DISASSEMBLY

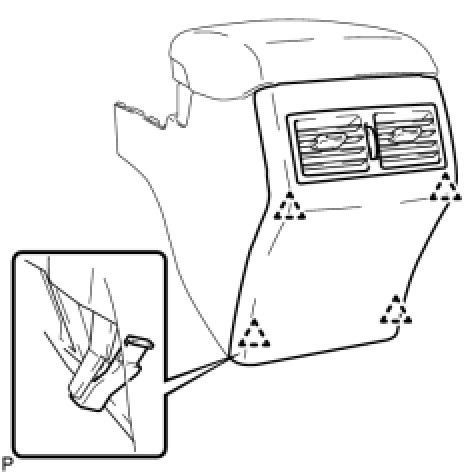

1. REMOVE REAR CONSOLE END PANEL SUB-ASSEMBLY (for Manual Air Conditioning System)

(a) Disengage the 4 clips and remove the rear console end panel sub-assembly.





2. REMOVE REAR CONSOLE END PANEL SUB-ASSEMBLY (for Automatic Air Conditioning System)

(a) Disengage the 4 clips and remove the rear console end panel sub-assembly.

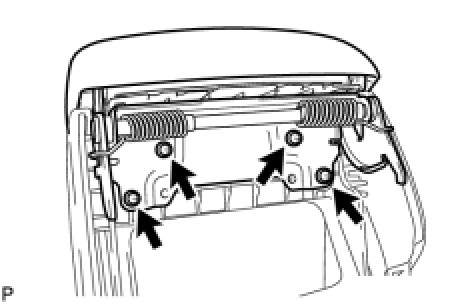

3. REMOVE CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY

(a) Remove the 4 screws and the console compartment door sub-assembly.
