Pinout Values and Diagnostic Parameters

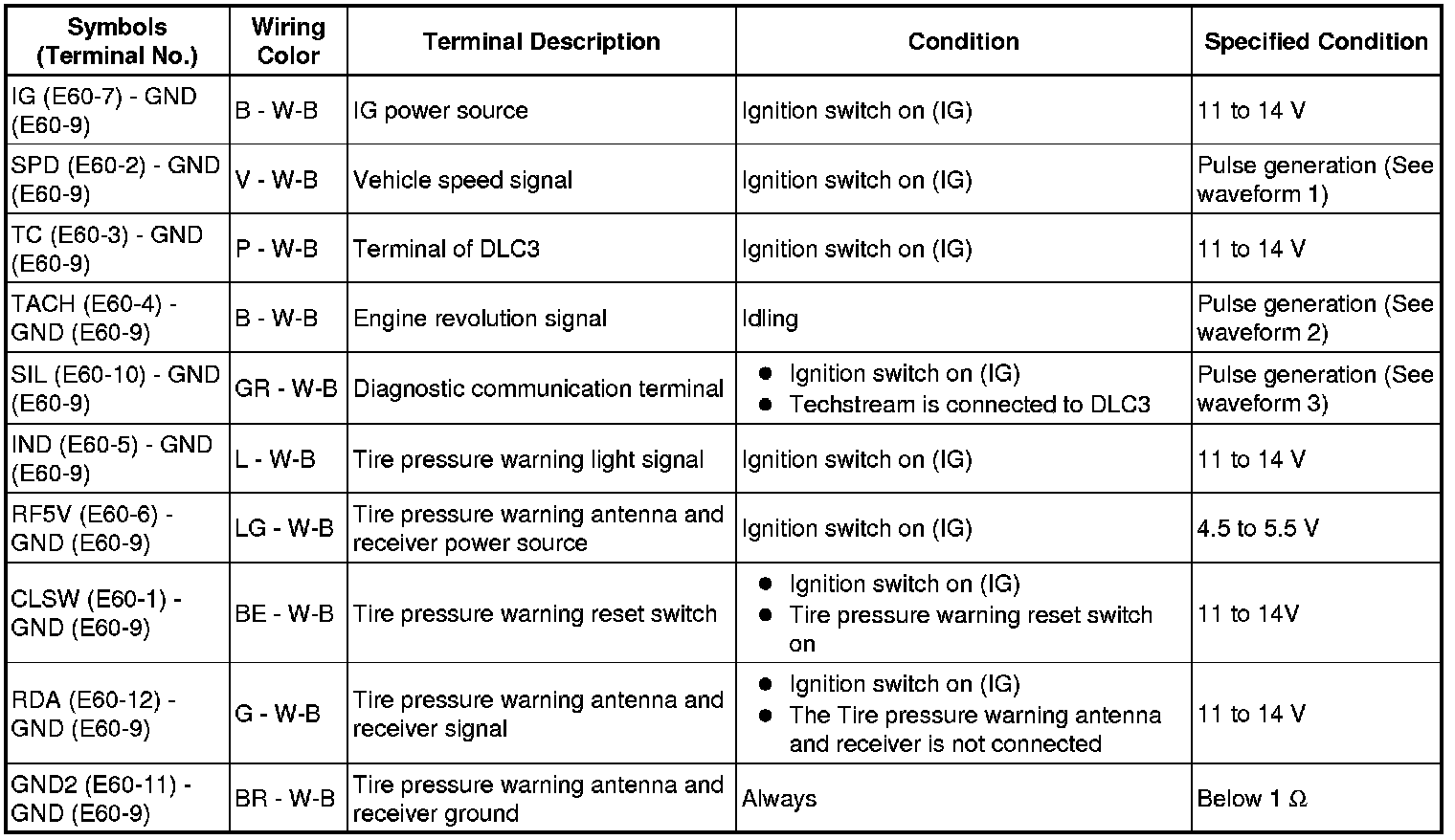

TIRE AND WHEEL: TIRE PRESSURE WARNING SYSTEM: TERMINALS OF ECU

HINT
Inspect the connectors from the back side while the connectors are connected.

1. Waveform 1 (Reference)

(a) Waveform

2. Waveform 2 (Reference)

(a) Waveform

HINT
The wavelength becomes shorter as the engine rpm increases.

3. Waveform 3 (Reference)

(a) Waveform
