Navigation Voice Circuit
NAVIGATION: NAVIGATION SYSTEM: Navigation Voice Circuit
- Navigation Voice Circuit
DESCRIPTION
This circuit is used when the voice guidance in the navigation system is on.

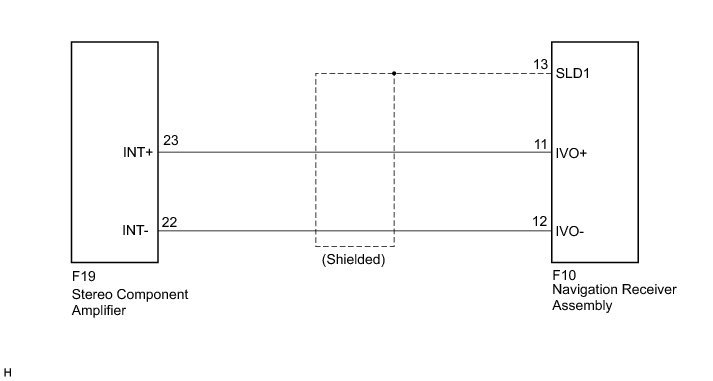

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
1. CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER - STEREO COMPONENT AMPLIFIER)
(a) Disconnect the navigation receiver assembly connector.
(b) Disconnect the stereo component amplifier connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
Text in Illustration
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Symptom Related Diagnostic Procedures
