Poor Sound Quality In All Modes (Low Volume)

NAVIGATION: NAVIGATION SYSTEM: Poor Sound Quality in All Modes (Low Volume)
- Poor Sound Quality in All Modes (Low Volume)

INSPECTION PROCEDURE

PROCEDURE

1. CHECK AUDIO SETTINGS

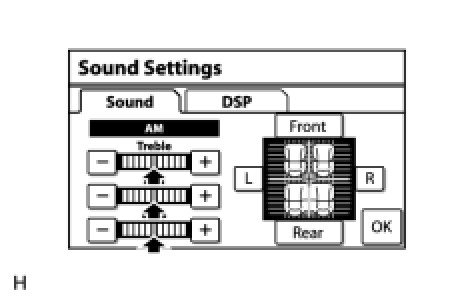

(a) Enter the "Sound Settings" screen by pressing the "Sound" switch on the audio display.





(b) Set "BASS", "MID" and "TREB" to the initial values and check that sound is normal.

OK:

Malfunction disappears.

HINT
Sound quality adjustment measures vary according to the type of the amplifier.

NG -- COMPARE WITH ANOTHER VEHICLE OF SAME MODEL

OK -- END

2. COMPARE WITH ANOTHER VEHICLE OF SAME MODEL

(a) Compare with another vehicle of the same model.

(1) Compare with another vehicle of the same model which does not have trouble to see if there is any difference in the sound quality.

OK:

No difference is found.

NG -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Symptom Related Diagnostic Procedures

OK -- END
