No Sound Can be Heard from Speakers





NAVIGATION: NAVIGATION SYSTEM: No Sound can be Heard from Speakers
- No Sound can be Heard from Speakers

INSPECTION PROCEDURE

PROCEDURE

1. CHECK AUDIO SETTINGS

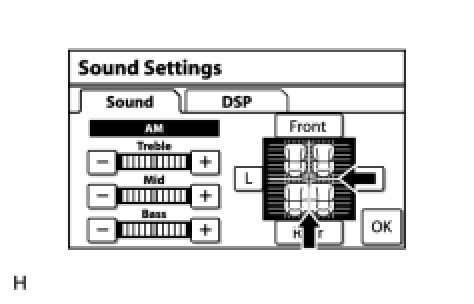

(a) Enter the "Sound Settings" screen by pressing the "Sound" switch on the audio display.





(b) Set volume, fader and balance to the initial values and check that sound is normal.

OK:

Audio system returns to normal.

HINT
Sound quality adjustment measures vary according to the type of the amplifier.

NG -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Symptom Related Diagnostic Procedures

OK -- END
