Cursor or MAP Rotates When Vehicle Stopped





NAVIGATION: NAVIGATION SYSTEM: Cursor or Map Rotates when Vehicle Stopped
- Cursor or Map Rotates when Vehicle Stopped

INSPECTION PROCEDURE

PROCEDURE

1. CHECK CONDITION

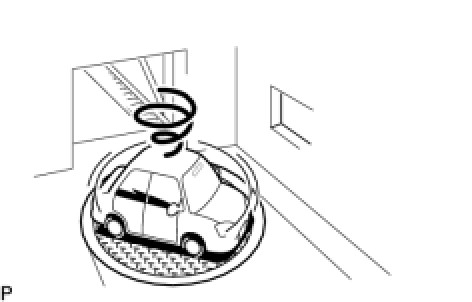

(a) Check with the customer if the vehicle has been turned by a turntable.





OK:

Vehicle has not been turned by turntable.

HINT
If the vehicle is turned on a turntable with the ignition switch ON, the system may store the angular velocity. As a result, the vehicle position cursor may deviate.

NG -- TURN IGNITION SWITCH TO ON WHEN VEHICLE IS COMPLETELY STOPPED

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Symptom Related Diagnostic Procedures
