Smart Key System

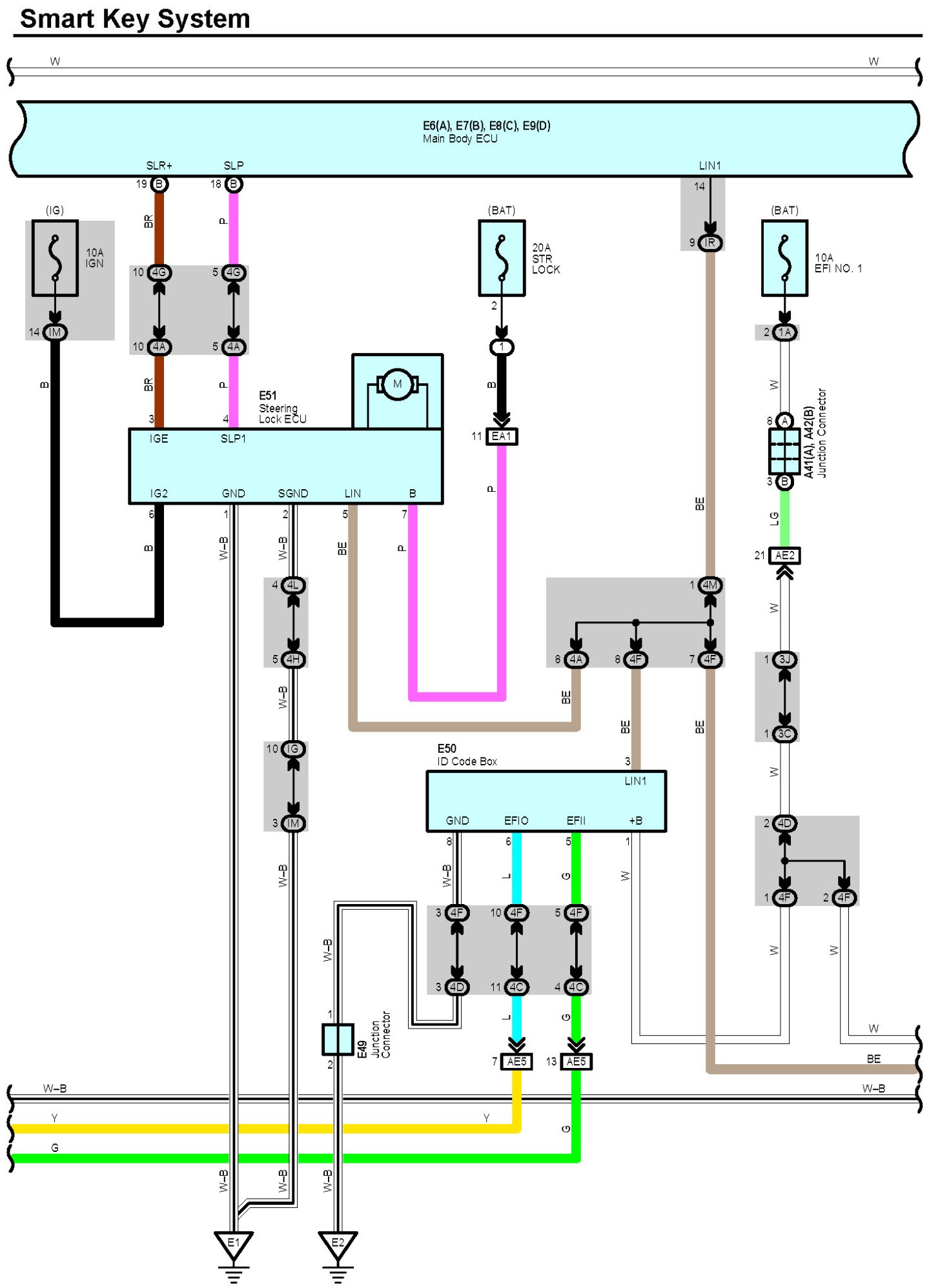

Smart Key System Part 1:

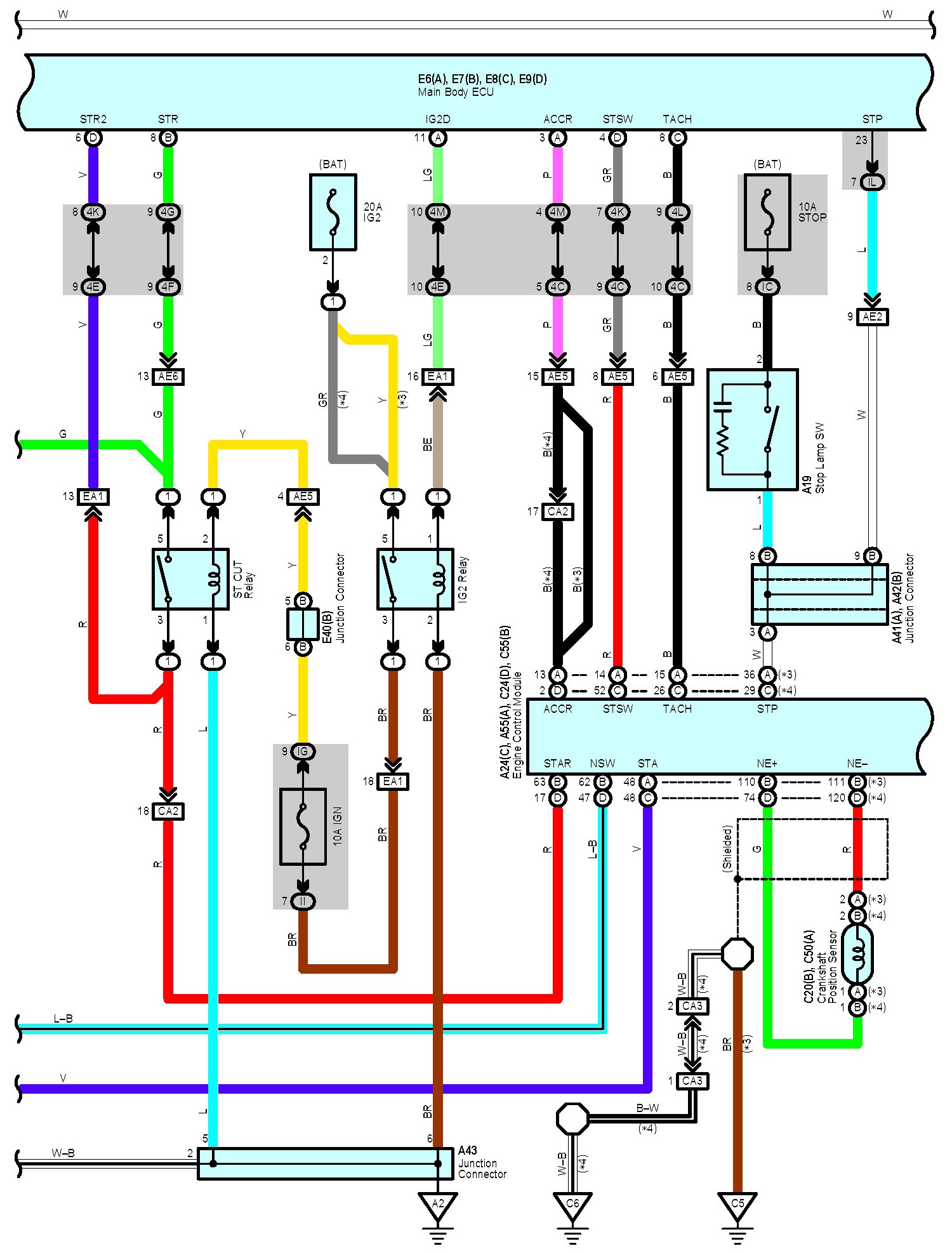

Smart Key System Part 2:

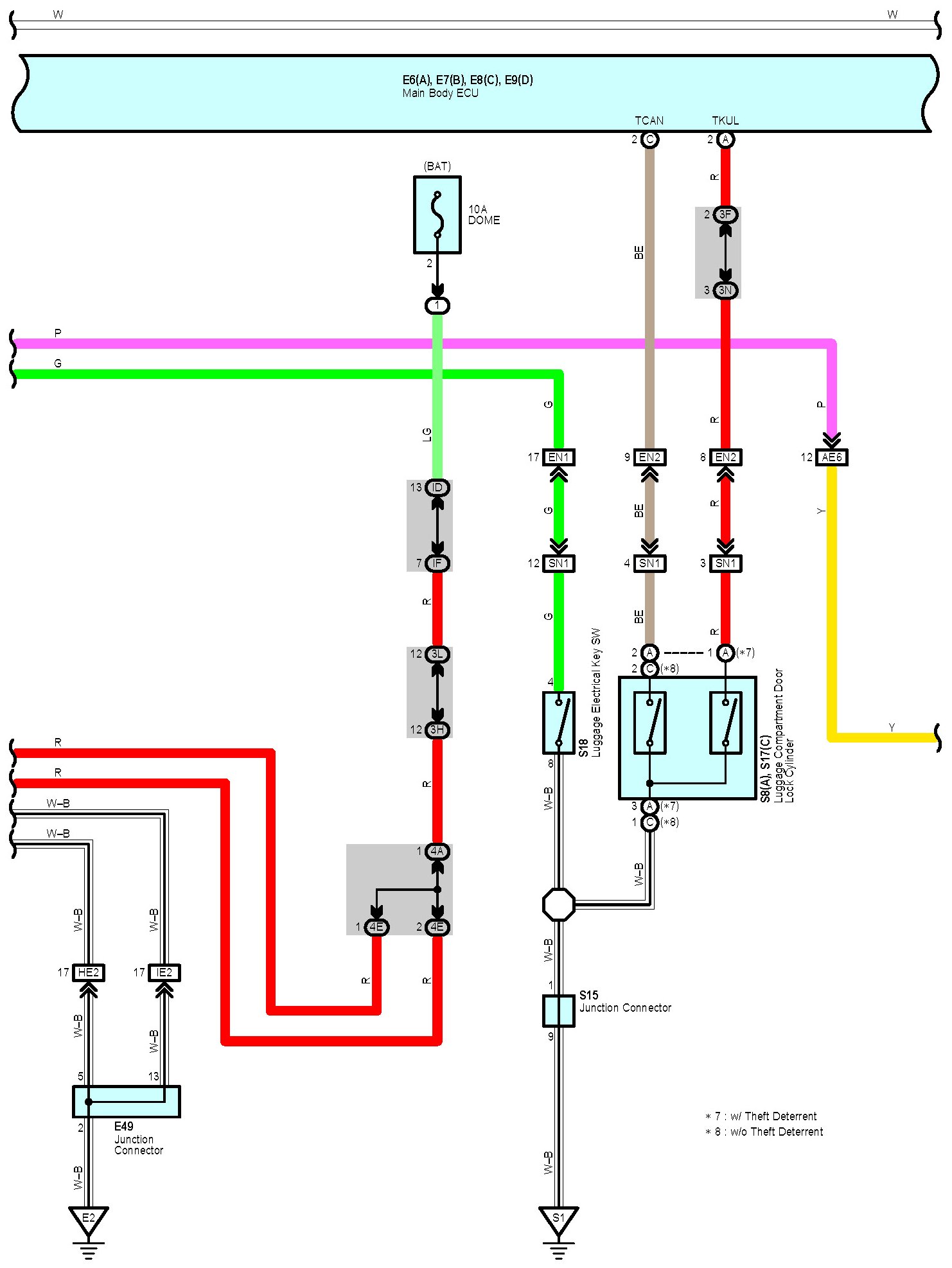

Smart Key System Part 3:

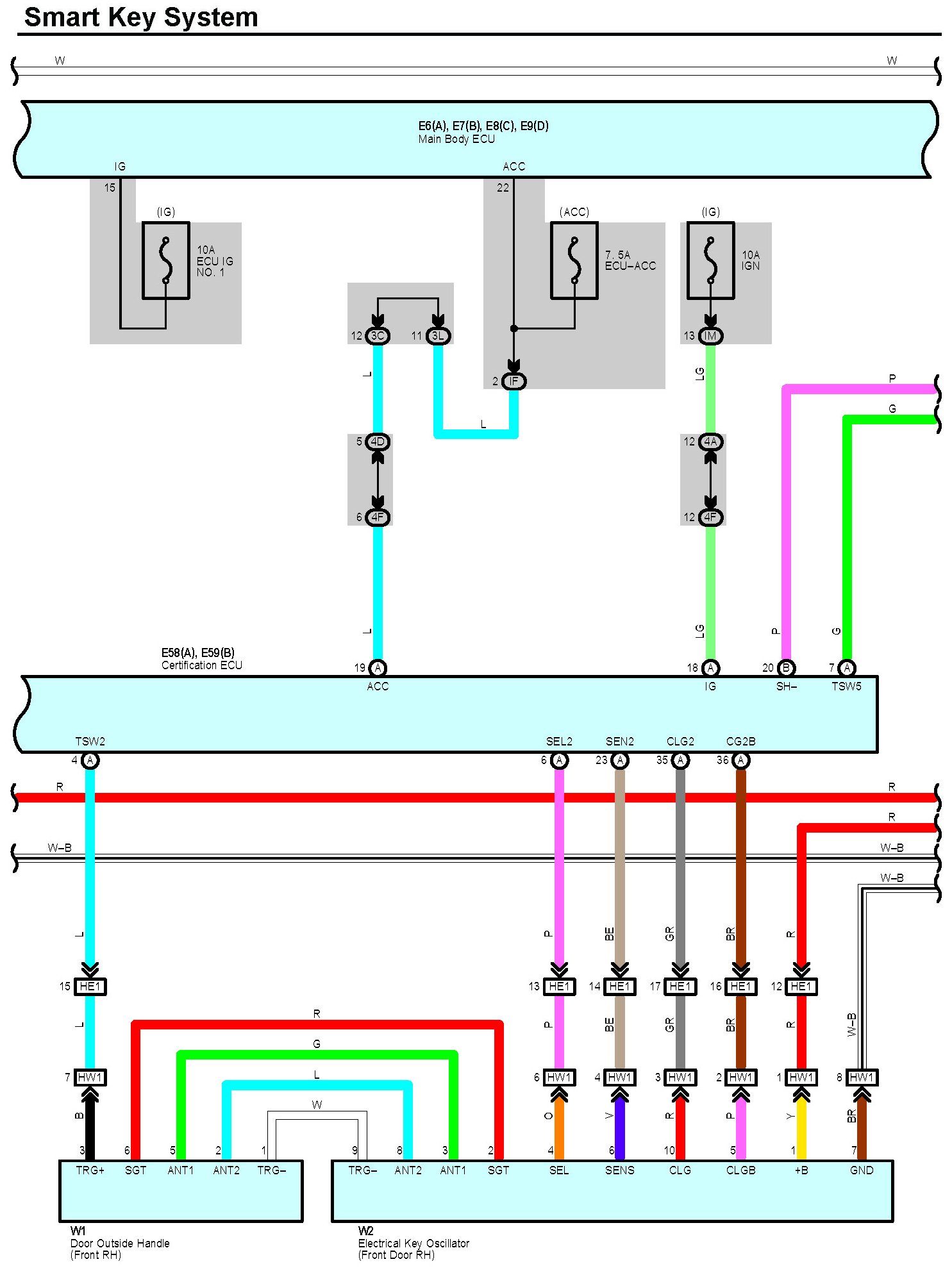

Smart Key System Part 4:
Smart Key System Part 5:
Smart Key System Part 6:
Smart Key System Part 7:
Smart Key System Part 8:
Smart Key System Part 9:
Smart Key System Part 10:
Smart Key System Part 11:
Smart Key System Part 12:
Smart Key System Part 13:
Smart Key System Part 14:
