Theft Deterrent System (w/ Smart Key System)





THEFT DETERRENT: THEFT DETERRENT SYSTEM (w/ Smart Key System): PROBLEM SYMPTOMS TABLE

HINT
* Troubleshooting of the theft deterrent system is based on the premise that the door lock control system and the wireless door lock control system are operating normally.
* Accordingly, before troubleshooting the theft deterrent system, first make certain that the door lock control system and the wireless door lock control system are operating normally.
* The following is the troubleshooting procedure for the theft deterrent system of a vehicle with the smart key system.
* Inspect the fuse and relay before investigating the suspected areas shown in the table below.

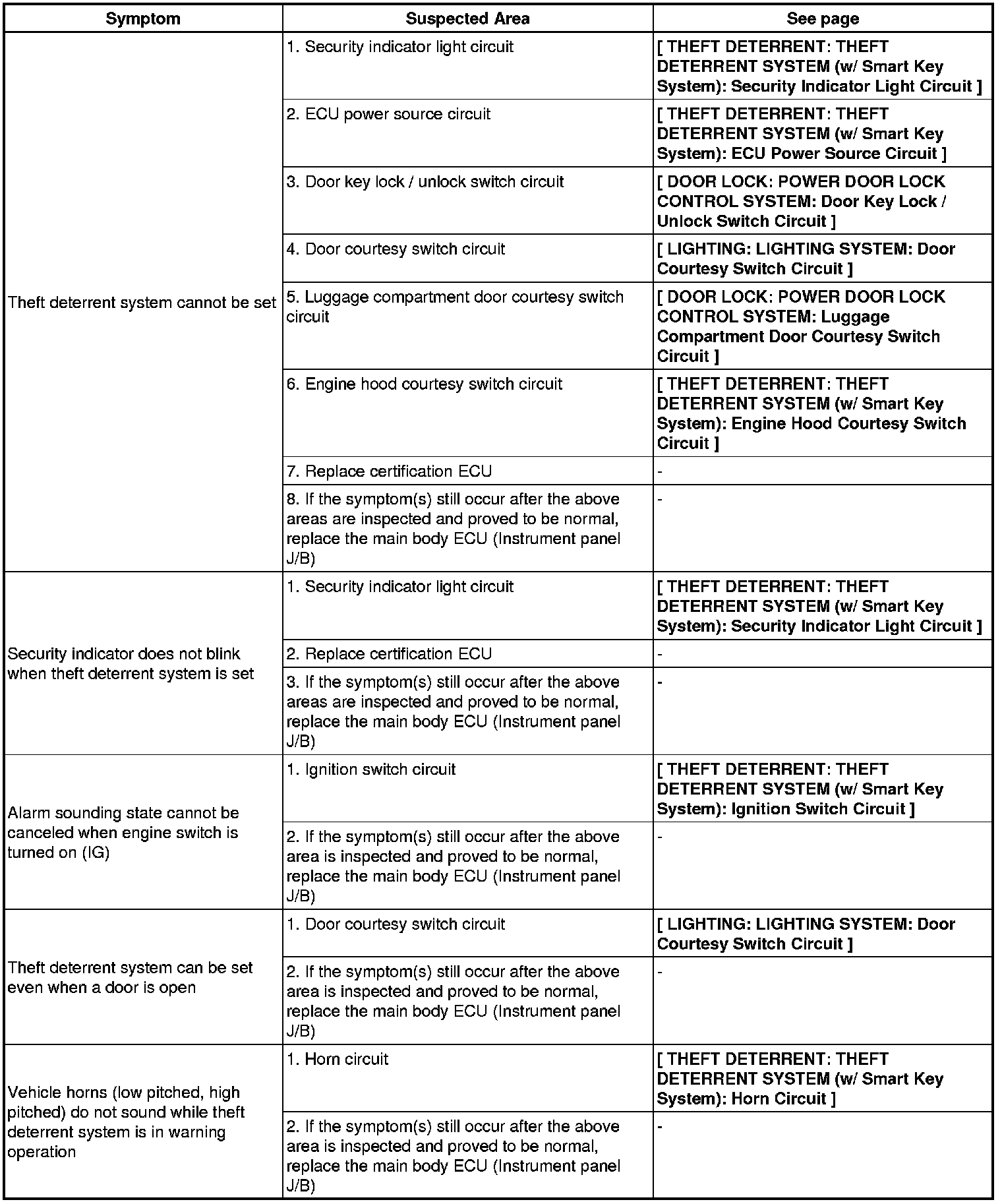

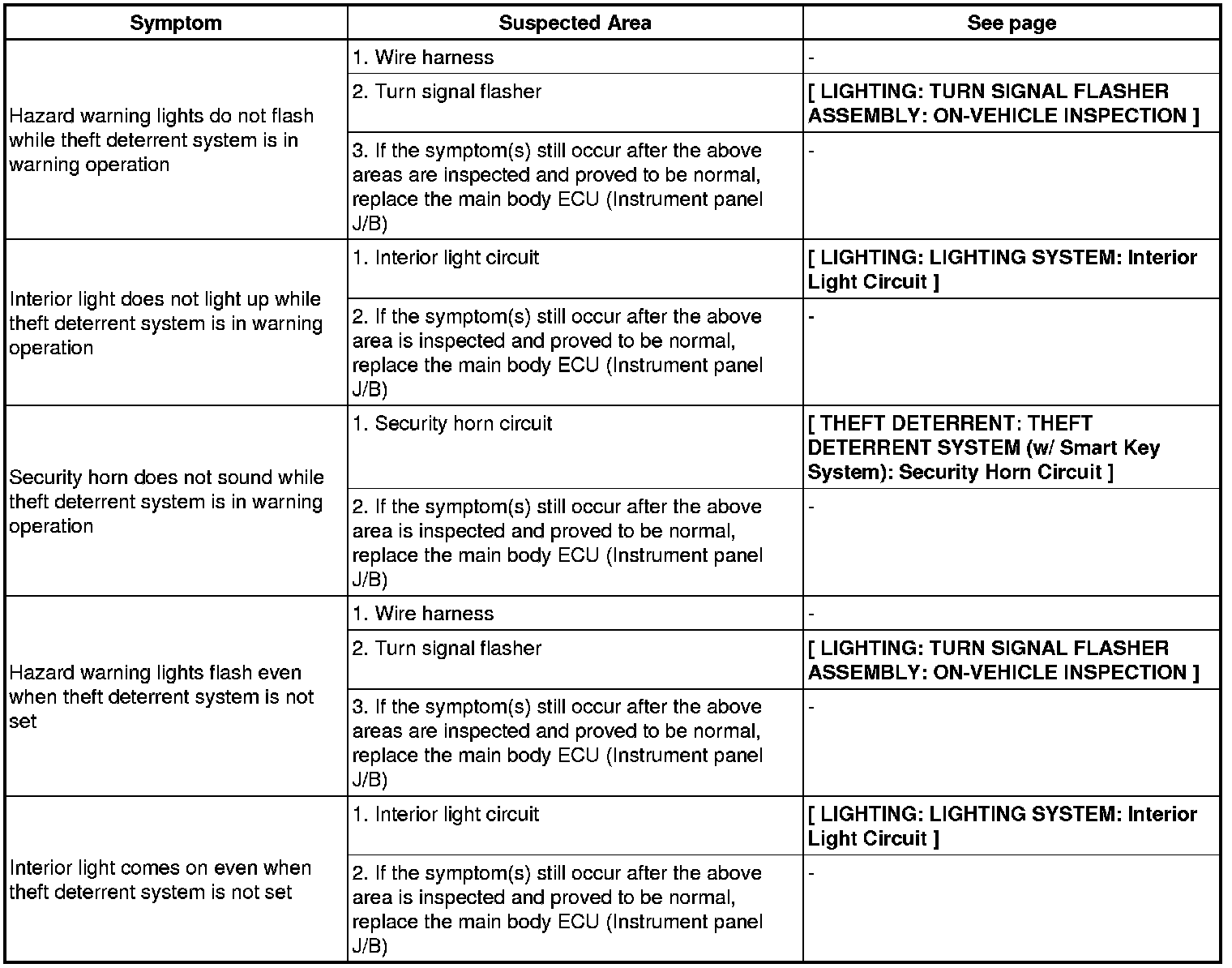

Theft deterrent system:
