Antenna, Radio: Service and Repair

AUDIO / VISUAL: WINDOW GLASS ANTENNA WIRE: REPAIR

1. WINDOW GLASS ANTENNA WIRE





NOTICE:
* When cleaning the glass, wipe it in the direction of the wire with a soft, dry cloth. Take care not to damage the wire. Do not use detergents or glass cleaners with abrasive ingredients.

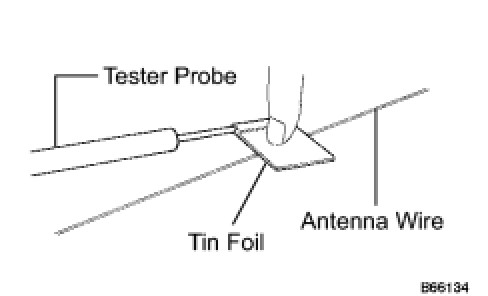

* When measuring voltage, wrap a piece of tin foil around the tip of the negative probe and press the foil against the wire with your finger, as shown in the illustration.

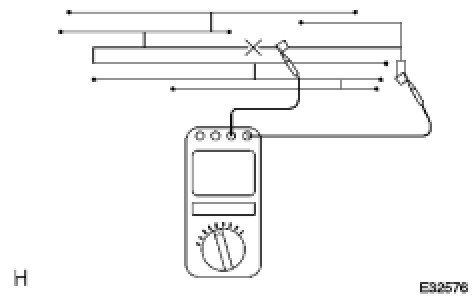

(a) Check the voltage at the center of each wire, as shown in the illustration.





2. REPAIR WINDOW GLASS ANTENNA WIRE





(a) Clean the broken wire tips with a grease, wax and silicone remover.

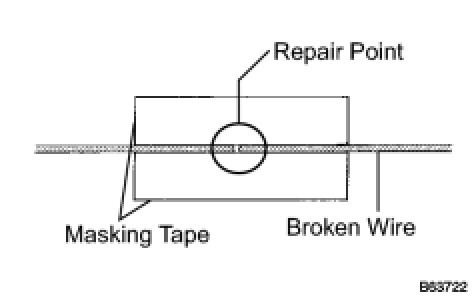

(b) Place masking tape along both sides of the wire to be repaired.

(c) Thoroughly mix the repair agent (Dupont paste No. 4817 or equivalent).

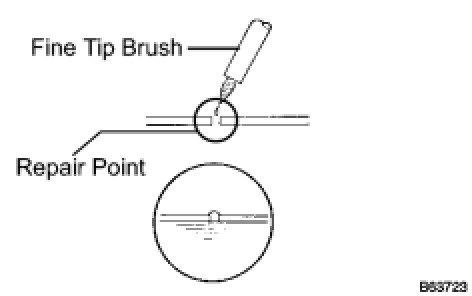

(d) Using a fine tip brush, apply a small amount of the repair agent to the wire.





(e) After a few minutes, remove the masking tape.
