Tire Pressure Warning Reset Switch Circuit

TIRE AND WHEEL: TIRE PRESSURE WARNING SYSTEM: Tire Pressure Warning Reset Switch Circuit
- Tire Pressure Warning Reset Switch Circuit

DESCRIPTION

Receiving a signal from the tire pressure warning reset switch, the tire pressure warning ECU and receiver indicates the initialization of the tire pressure warning system.

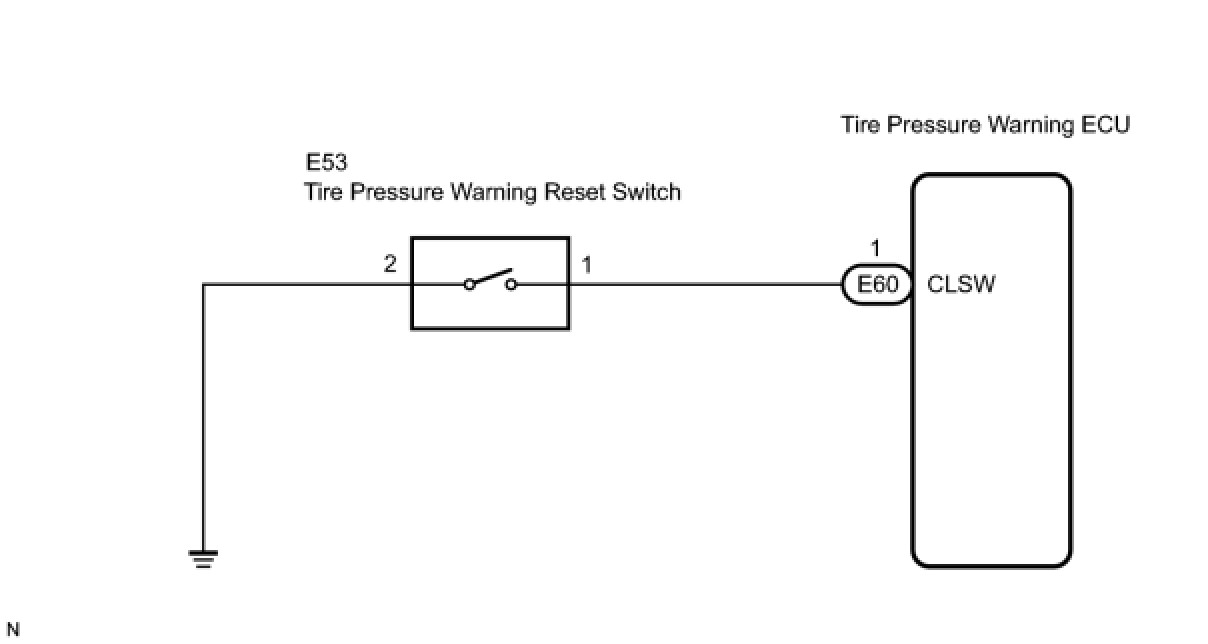

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
It is necessary to perform initialization Initialization after registration Registration of the transmitter IDs into the tire pressure warning ECU, after the ECU have been replaced.

PROCEDURE

1. CHECK TIRE PRESSURE WARNING RESET SWITCH FUNCTION

(a) Perform the tire pressure warning reset switch test in TEST MODE PROCEDURE Test Mode Procedure.

OK:

Reset switch ON
Tire pressure warning light illuminates.

Reset switch OFF
Tire pressure warning light blinks.

NG -- INSPECT TIRE PRESSURE WARNING RESET SWITCH

OK -- END

2. INSPECT TIRE PRESSURE WARNING RESET SWITCH

(a) Disconnect the tire pressure warning reset switch connector.

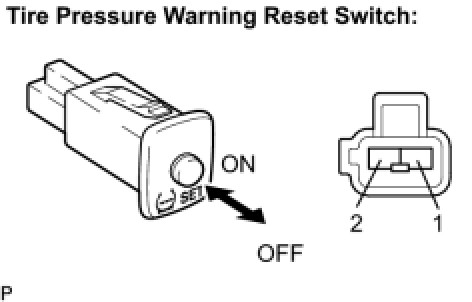

(b) Measure the resistance between terminals 1 and 2 of the tire pressure warning reset switch when the tire pressure warning switch is ON or OFF.

Standard resistance:





NG -- REPLACE TIRE PRESSURE WARNING RESET SWITCH Removal
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (TIRE PRESSURE WARNING RESET SW - TIRE PRESSURE WARNING ECU)

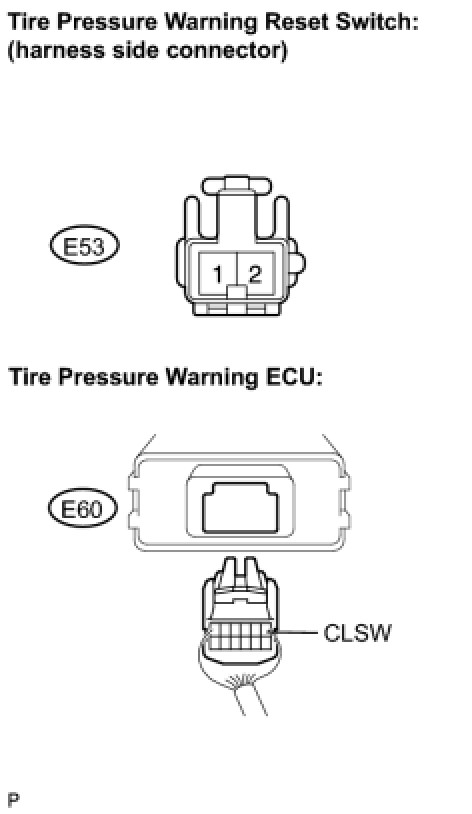

(a) Disconnect the tire pressure warning reset switch E53 connector and tire pressure warning ECU E60 connector.





(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE TIRE PRESSURE WARNING ECU Removal
